CRUX
CRUX
Ceiling
| Model | Finish | Measurement | CCT | Lm | W | |
| LIG3TS096 | 1  Matt silver |
12 1200mm | 30  3000K |
1562 | 22,1 | |
2  White |
40  4000K |
1613 | ||||
3  Black |
15 1500mm | 30 3000K |
1969 | 27,8 | ||
| 40 4000K |
2034 | |||||
| 20 2000mm | 30 3000K |
2648 | 37,4 | |||
| 40 4000K |
2735 |
Wall
| Model | Finish | Measurement | CCT | Lm | W | |
| LIG2TS096 | 1 Matt silver |
12 1200mm | 30 3000K |
362 | 4,8 | |
| 2 White |
40 4000K |
374 | ||||
| 3 Black |
15 1500mm | 30 3000K |
797 | 10,6 | ||
| 40 4000K |
823 | |||||
| 20 2000mm | 30 3000K |
1666 | 22,1 | |||
| 40 4000K |
1721 |
Features

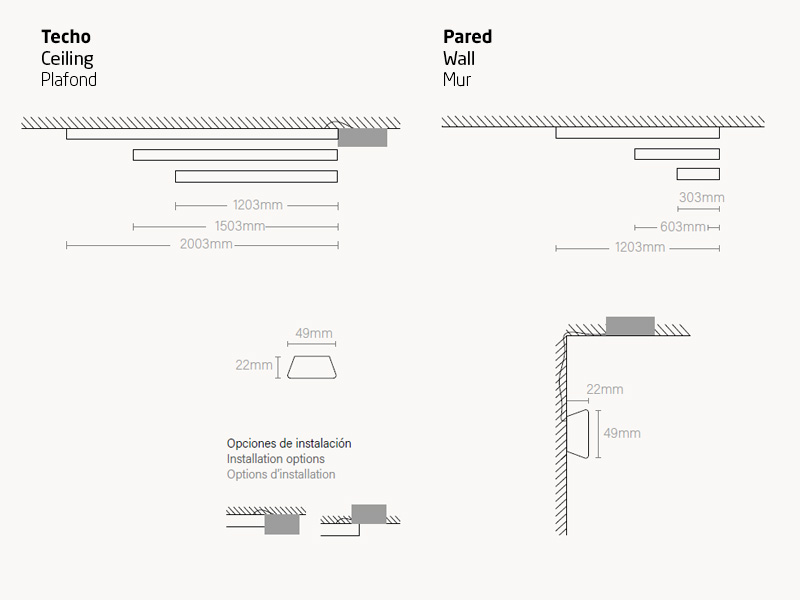

| Dimensions | Ø 24mm |
| Lenght | 1200/1500/ 2000mm |
| Profile material | AL6060 |
| Diffuser material | Policarbonato |
| CTT | 3000K/4000K |
| CRI | >80 |
| R9 | >10 |
| Lifetime | 50.000h |
| IP | 20 |
| Energetic efficiency | A++ |
| MacAdams steps | 3 |
| Beam angle | 75° |
| Class | II |
| Working temperature | -20~50°C |
| Storage temperature | -40~80°C |
