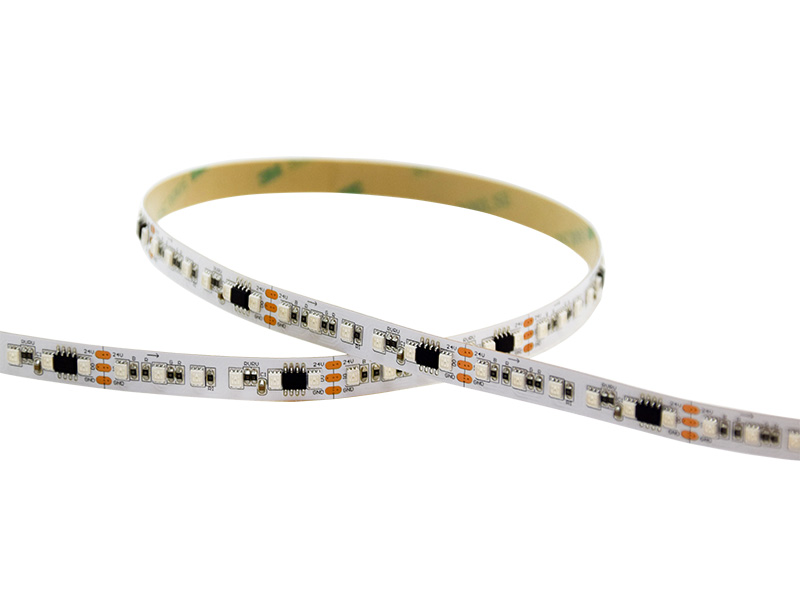

D-TT15-RGB
D-TT15-RGB
| REF. | CCT(K) | Lm/m | Lm/W |
| D-TT15-RGB- 6P |  Red |
95 | 19 |
 Green |
320 | 64 | |
 Blue |
55 | 11 |
Features
| Power | 15W |
| Roll power | 75W |
| IP | 20 |
| IC | TM1804 |
| Voltage | 24V |
| LED type | 2835 |
| LEDs/ pixel | 6 |
| Pixel/m | 20 |
| Pixel pitch | 16,7mm |
| Beam angle | 120° |
| Min. cutting length | 50mm |
| Roll length | 5m |
| Life time | 50.000h |
| Ambient temperature | -25~60°C |
| Storage temperature | -40~80°C |
| Need heatsink | Yes |
| Needs controller | Yes |
