11110103200

	REF.	Description
Welded connectors	11110103200	3 threads cable with female connector

11110103100

	REF.	Description
Welded connectors	11110103100	3 threads cable with male connector

11110104200

	REF.	Description
Welded connectors	11110104200	4 threads cable with female connector

11110104100

	REF.	Description
Welded connectors	11110104100	4 threads cable with male connector

11110122200

	REF.	Description
IP67 Welded connectors	11110122200	2 threads cable with female connector IP67

11110122100

	REF.	Description
IP67 Welded connectors	11110122100	2 threads cable with male connector IP67

11110123200

	REF.	Description
IP67 Welded connectors	11110123200	3 threads cable with female connector IP67

11110123100

	REF.	Description
IP67 Welded connectors	11110123100	3 threads cable with male connector IP67

11110124200

	REF.	Description
IP67 Welded connectors	11110124200	4 threads cable with male connector IP67

11110124100

	REF.	Description
IP67 Welded connectors	11110124100	4 threads cable with male connector IP67

5020500000

	REF.	Description
Cable	5020500000	2 threads cable 2×0,50mm

5020501010

	REF.	Description
Cable	5020501010	2 threads white flat cable 2×0,50mm

5020751010

	REF.	Description
Cable	5020751010	2 threads white flat cable 2×0,75mm

5020502500

	REF.	Description
Cable	5020502500	2 threads transparent round cable 2×0,50mm

5020752500

	REF.	Description
Cable	5020752500	2 threads transparent round cable 2×0,75mm

5020752021

	REF.	Description
Cable	5020752021	2 threads outdoor black round cable 2×0,75mm

5030500000

	REF.	Description
Cable	5030500000	3 threads cable 3×0.50mm

5040500000

	REF.	Description
Cable	5040500000	4 threads cable 4×0.50mm

5050500000

	REF.	Description
Cable	5050500000	5 threads cable 5×0.50mm

DATA AND POWER CABLE

	REF.	Description	Measurement
Cable digital	520201060050	Data and power cable	0,5m
	520201060200		2m
	520201060500		5m

POWER CABLE

	REF.	Description	Measurement
Cable digital	520201060050	Power cable	0,5m
	520201060200		2m
	520201060500		5m

SYNCRO CABLE

	REF.	Description	Measurement
Cable digital	520201060050	Syncro cable	0,5m
	520201060200		2m
	520201060500		5m

5020003020

	REF.	Description
Link Digital	5040003020	2 threads shielded cable 2×0.75mm

5040003020

	REF.	Description
Link Digital	5040003020	4 threads shielded black round cable 2×0.75mm + 2×0.25mm

531001100000

	REF.	Description
Link Digital	531001100000	Data link + power

530001100000

	REF.	Descripción
Link Digital	530001100000	Power link

520001100000

	REF.	Descripción
Link Digital	520001100000	End line’s power link

110004322

	REF.	Description
Paguro Box	110004322	Connection box for 2 threads LED strip IP68

110004342

	REF.	Description
Paguro Box	110004342	Connection box for 4 threads LED strip IP68

FAC

REF.	V	W	Measurements
FC15	200-240V	15W	103 x 35,5 x 16mm
FC20	200-240V	20W	103 x 35,5 x 16mm
FC30	200-240V	30W	156 x 50 x 17mm
FC40*⁽¹⁾	100-240V	40W	148 x 40 x 30mm
FC60*⁽¹⁾	100-240V	60W	163 x 43 x 32mm
FC100*⁽¹⁾	100-240V	100W	190 x 52 x 37mm

^{* Compliance EU standards for LED lighting except for EN55015 and EN61000-3-2}
^{(1) 3 warranty years}
^{(2) 5 warranty years}
^{(3) 7 warranty years}

Constant coltage power supply.

Operate from	200~240VAC	90~264VAC
	FC15-FC20-FC30	FC35-FC60-FC100

FAH

REF.	V	W	Measurement
FH75	100-240V	75W	180 x 63 x 35,5mm
FH100	100-240V	100W	199 x 63 x 35,5mm
FH150	100-240V	150W	219 x 63 x 35,5mm
FH240	100-240V	240W	244 x 71 x 37,5mm
FH320⁽¹⁾	100-240V	320W	252 x 90 x 44mm

Constant coltage power supply.
Operates from 100 ~ 305VAC.*

^{Compliance EU standards for LED lighting.}
^{(1) FH320: 7 warranty years.}
*FH320 operates from 90~305VAC.

FAW

REF.	V	W	Measurement
FW75	100-240V	75W	180 x 63 x 35,5mm
FW100	100-240V	100W	199 x 63 x 35,5mm
FW150	100-240V	150W	219 x 63 x 35,5mm
FW240	100-240V	240W	244 x 71 x 37,5mm
FW320⁽¹⁾	100-240V	320W	252 x 90 x 44mm
FW480⁽²⁾	100-240V	480W	262 x 125 x 43,8mm

Constant coltage power supply.
Operates from 100 ~ 305VAC.

^{(1) FW320: 7 warranty years –}^{(2) Solo en 24V}
^{Compliance EU standards for LED lighting.}
*FW320 operates from 90~305VAC.

FAI

REF.	V	W	Measurement
FI35	100-240V	35W	99 x 82 x 36mm
FI50	100-240V	90W	99 x 97 x 36mm
FI75	100-240V	75W	125 x 98x 38mm
FI100	100-240V	100W	159 x 97 x 38mm
FI150	100-120V/ 100-240V	150W	199 x 98 x 38mm
FI200	100-240V	200W	210 x 131 x 50mm
FI320*	100-240V	320W	230 x 147 x 50mm

^{*Fan included}

Constant current power supply for industrial useonly.
Operates from 88 ~ 264VAC.

^{For industrial use only}
^{(1) Fan included.}
^{*FI200: Operates from 85~264VAC.}

FAT

Power supply adjustable by TRIAC with constant voltage output and with PFC included.

It works with all Triacs, both with head and tail phase cutting (Leading Edge and Trailing Edge).

REF.	V	W	Medidas
FT30	200-240v	30W	155 x 54 x 20mm
FT60	200-240v	60W	178 x 61 x 24mm
FT100⁽¹⁾	200-240v	100W	230 x 70 x 43mm
FT150⁽¹⁾	200-240v	150W	256 x 78 x 47mm
FT300⁽¹⁾	200-240v	300W	276 x 78 x 47mm

(1) Unit protected at 110º.

^IP65.
^{Installable in furniture. Thermally protected, TC max. 110ºC}

^{Compliance EU standards for LED lighting.}

BAT

REF.	W	Measurement
BA180-24	180W	145 x 81 x 95mm
BA260-24	260W	145 x 81 x 95mm
BA360-24	360W	145 x 81 x 95mm

Rechargeable battery for constant voltage LEDs.

Includes fixing, locking system and connection in single device.

Mote than 2000 charge cycles.

For indoor or outdoor installations.

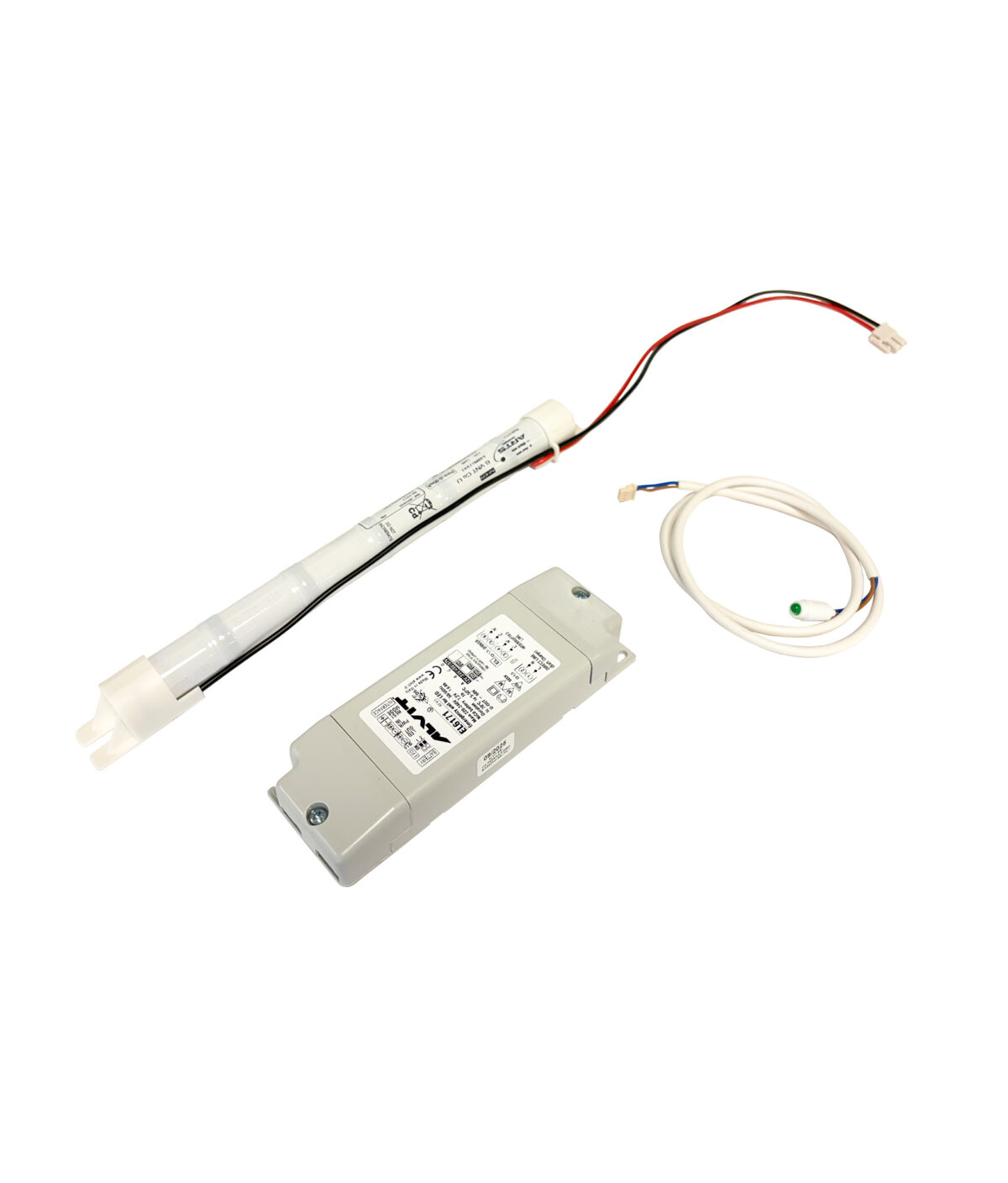

KIT

REF.	Description	Measurement
KF24	Electronic unit	156 x 52 x 26mm
KF24	Battery	135 x 45 x 23mm

DMR-0-10-75

REF.	Description	Measurement
DMR-0-10-75	1 channel converter	125 x 50 x 25mm

1 channel converter.

Convert the 0-10 signal to PWM.

It operates at 12 ans 24V.

Accesories
RP-DMR-150	RP-DMR-360

LB1

REF.	Description	Measurement
LB1	SPI controller	132 x 70 x 20mm

Controller for installations based on pixels. It has 1 data output port. It can control up to 400px.

Requires SD card for operation.

It allows to modify scene number and playback speed.

It can be synchronized with other LB1 and LB8 for installations of more than 400px.

DMR-DA

REF.	Description	Measurement
DMR-DA	1 channel converter	156 x 51,5 x 25,5mm

1 channel converter compatible with DALI, 0-10V, 1-10V and PUSH signal.

The signal is indicates with Switch.

It operates at 12 ans 24V.

Accesories
RP-DMR-150	RP-DMR-360

LB8

REF.	Description	Measurement
LB8	SPI controller	132 x 156 x 20mm

Controller for installations based on pixels. It has 8 data output ports. It can control up to 400px per port (total 3200px).

Requires SD card for operation.

It can be synchronized with other LB1 and LB8 for installations of more than 3200px.

To modify the scene number and playback speed, the DMR-LB8 or DMX-DIG accessory is required.

Accesories
DMR-LB8	DMX-DIG

LB-AM-D

REF.	Description	Measurement
LB-AM-D	Digital amplifier	55 x 40 x 11mm

Digital Signal amplifer for pixel based installation.

Compatible with LB-1 and LB-8 programmers.

LB-DMX

REF.	Description	Measurement
LB-DMX	DMX controller	132 x 70 x 20mm

Controller for DMX signal based installations. It has 1 data output port. It can control up to 170px RGB.

Requires SD card for operation.

It allows to modify scene number and playback speed.

It can be synchronized with other LBDMXs for larger installations.

DMX-DIG

REF.	Description	Measurement
DMX-DIG	DMX to Digital converter	140 x 65 x 40mm

Converter to control the scene number and speed of the LB8 controller with DMX signal.

5V AC/DC adapter included.

DMR-LB8

REF.	Description	Measurement
DMR-LB8	LB8 accessory	125 x 50 x 25mm

Converter to control the scene number and speed of the LB8 controller with 4 push buttons without charge (not included).

LB-ART

REF.	Description	Measurement
LB-ART2	Artnet module 2 ports	92 x 70 x 45mm
LB-ART4	Artnet module 4 ports	70 x 110 x 40mm

Module based on the Artnet protocol to control LEDs with SPI signal without the need for additional equipament. It allows to control the live installation.

Ethernet connection. It has 2 or 4 ports depending on the model.

Especially suitable for projects large installations and spectacular.

LB-ART2

REF.	Description	Measurement
LB-ART2	Arnet SPI direct converter, 8 universes	90 x 70 x 46mm

Artnet to SPI signal converter for live installations.

Ethernet cable connection.

2 ports that control up to 4 universes per port.

DIM rail compatible.

REF.	Description	Measurement
LB-AM-D	Digital amplifier (for SPI signal only)	90 x 70 x 46mm

PPT-DMX

REF.	Description	Measurement
PPT-DMX	Controller DMX	146 x 106 x 11mm

DMX512 controller, allows programming up to 24 dynamic or static scenes via USB.

It can operate live or stand alone.

It has 3 touch buttons to select the programmed scenes, intensity and colors.

It can controller up to 128 DMX channels.

Compatible with any DMX light or DMX LED driver.

Includes USB cable and control software .

Compatible with european box recessed.

Accesories
DMX-DALI-PWM	DE-4-DMX-5A

PPT-DMX3

REF.	Description	Measurement
PPT-DMX	Controller DMX	146 x 106 x 11mm

DMX512 controller, allows programming up to 500 dynamic or static scenes via USB.

It allows to control up to 10 zones independently. It can operate live or stand alone.

It has 3 touch buttons to select the programmed scenes, intensity and colors.

It has a calendar to program the scenes with time control.

It can controller up to 1024 DMX channels.

Compatible with any DMX light or DMX LED driver.

Ethernet connection. Includes USB cable and control software .

Compatible with european box recessed.

Accesories
DMX-DALI-PWM	DE-4-DMX-5A

DMX-DALI-PWM

REF.	Description	Measurement
DMX-DALI-PWM	3 channels converter	110 x 70 x 23mm

3 channels converter compatible whit DMW15 and DALI to switch to PWM.

Possibility to select DMX address via Switch.

It operates at 12 and 24V.

DE-4-DMX-5A

REF.	Description	Measurement
DE-4-DMX-5A	4 channels converter	170 x 50 x 23mm

4 channels converter compatible with DMX512 signal to switch to PWM.

Possibility to select DMX address through display.

Possibility to select with the Switch 30 scenes that include color changes and fixed colors.

It operates at 12 and 24V.

BT-1-CASX

REF.	Description	Measurement
BT-1-CASX	1 channel dimmer	45 x 58 x 19mm

1 channel dimmer.

It works with CASAMBI system through Bluetooth, compatible with Android andiOS.

It allows to memorize different levels.

ON/OFF and controlling the intensity with push-buttom without charge (not included) are
available.

It operates at 12 and 24V.

Accesories
RP-DMR-150	RP-DMR-360

BT-1-CAS-DA

REF.	Description	Measurement
BT-1-CAS-DA	CASAMBI converter	57 x 36 x 23mm

CASAMBI system converter through Bluetooth to signals DALI, 0-10V or 1-10V.

Accesories

DMR-DA

BT-1-CAS-230

REF.	Description	Measurement
BT-1-CAS-230	1 channel dimmer	41 x 37 x 14mm

Phase dimmer to incandescent lamps, LED dimmable lamps and LED dimmable controllers.

It works with CASAMBI system through Bluetooth, compatible with Android and iOS.

It allows to memorize different levels.

TP-CAS

REF.	Description	Measurement
TP-CAS-B	White touch panel	90 x 90 x 12mm
TP-CAS-N	Black touch panel	90 x 90 x 12mm

Touch panel programmable with CASAMBI system through Bluetooth.

It has 8 buttons, 2 to select intensity, 2 multifunction and 4 programmable.

Installation without wiring.

Includes support with magnet for surface fixation.

RP-DMR-150

REF.	Description	Measurement
RP-DMR-150	1 channel repeater	125 x 50 x 25mm

1 channel repeater.

Repeater compatible with all 1 channel dimmers.

It operates at 12 and 24V.

RP-DMR-360

REF.	Description	Measurement
RP-DMR-360	1 channel repeater	87 x 21 x 8,5mm

1 channel repeater.

Repeater compatible with all 1 channel dimmers.

Small dimensions.

It operates at 12 and 24V.

RP-RGB-150

REF.	Description	Measurement
RP-RGB-150	3 channels repeater	125 x 50 x 25mm

3 channels repeater.

Repeater compatible with all 3 channels (RGB) controllers and converters.

It operates at 12 and 24V.

RP-RGB-360

REF.	Description	Measurement
RP-RGB-360	3 channels repeater	87 x 21 x 8,5mm

3 channels repeater.

Repeater compatible with all 3 channels (RGB) controllers and converters.

Small dimensions.

It operates at 12 and 24V.

RP-RGBW-150

REF.	Description	Measurement
RP-RGBW-150	4 channels repeater	125 x 50 x 25mm

4 channels repeater.

Repeater compatible with all 4 channels (RGBW) controllers and converters.

It operates at 12 and 24V.

TPR-1

REF.	REF.	Description	Measurement
TPR-1	TP-1*	Touch panel	86 x 86 x 20,5mm
TPR-1	RE-1-6,5A*	Receiver	33 x 97 x 18mm

(*) These components can be purchased separtely.

1 channel wireless touch surface dimmer.

Selector of intensity.

Preserves state and position memory.

It allows to link more than one receiver by panel.

It operates at 12 and 24V. Remote distance 20m.

Accesories
RP-DMR-150	RP-DMR-360

TP-1-4

REF.	Description	Measurement
TP-1-4-B	White touch panel	86 x 86 x 11,5mm
TP-1-4-N	Black touch panel	86 x 86 x 11,5mm

1 channel wireless dimmer.

Selector of intensity.

It allows to control up to 4 zones independently.

Preserves state and position memory.

It operates at 12 and 24V. Remote distance 20m.

Compatible with european box to recessed.

Accesories
RP-DMR-150	RP-DMR-360

TPR-1-4

REF.	REF.	Description	Measurement
TPR-1-4-B	TPR-1-4-B*	Touch panel	86 x 86 x 4,5mm
TPR-1-4-B	RE-1-6,5A*	Receiver	33 x 97 x 18mm
TPR-1-4-N	TPR-1-4-N*	Touch panel	86 x 86 x 11,5mm
TPR-1-4-N	RE-1-6,5A*	Receiver	33 x 97 x 18mm

(*) These components can be purchased separtely.

1 channel wireless touch dimmer.

Selector of intensity.

It allows to control up to 4 zones indepently.

Preserves state and position memory.

It allows to link more than one receiver by panel.

It operates at 12 and 24V. Remote distance 20m.

Compatible with european box.

Accesories
RP-DMR-150	RP-DMR-360

RCR-1

REF.	REF.	Description	Measurement
RCR-1	RC-1*	Remote control	139 x 36 x 11mm
RCR-1	RE-1-6,5A*	Receiver	33 x 97 x 18mm

(*) These components can be purchased separately.

1 channel wireless touch dimmer.

Selector of intensity.

Preserves state and position memory.

It allows to link more than one receiver by remote control.

Includes support with magnet.

It operates at 12 and 24V. Remote distance 20m.

Accesories
RP-DMR-150	RP-DMR-360

RCR-1-4

REF.	REF.	Description	Measurement
RCR-1-4	RC-1-4*	Remote control	139 x 36 x 11mm
RCR-1-4	RE-1-6,5A*	Receiver	33 x 97 x 18mm

(*) These components can be purchased separately.

1 channel wireless dimmer.

Selector of intensity.

It allows control 4 zones independently.

It allows to memorize 3 diferents scenes.

Preserves state and position memory.

It allows to link more than one receiver by remote control.

Includes support with magnet.

It operates at 12 and 24V. Remote distance 20m.

Accesories
RP-DMR-150	RP-DMR-360

DMR-75

REF.	Description	Measurement
DMR-75	1 channel dimmer	125 x 50 x 25mm

1 channel dimmer.

It works with push-button withcharge (not included).

Preserves state and position memory.

It operates at 12 and 24V.

Accesories
RP-DMR-150	RP-DMR-360

DMR-150

REF.	Description	Measurement
DMR-150	1 channel dimmer	117 x 80 x 45mm

1 channel dimmer.

It works with push-button withcharge (not included).

Preserves state and position memory.

It operates at 12 and 24V.

Accesories
RP-DMR-150	RP-DMR-360

INT-TL-D

REF.	Description	Measurement
INT-TL-D (1)	1 channel dimmer	50 x 10 x mín. 5mm/ máx. 11m
INT-TL-Dx (2)	1 channel dimmer	50 x 11 x mín. 14mm/ máx. 28m

1 channel touch dimmer.

Suitable for installation in aluminum profile.

Preserves state and position memory.

It operates at 12 and 24V.

(1): Compatible with profiles: ST4, ST6, ST9, ST17, STTS, ST52, ST64, ST65, ST66 y ST68

(2): Compatible with profiles: ST3+ 3L, ST4+ 3L, ST11, ST12, ST14, ST18, ST22, ST23, ST55, ST56, ST57 y ST67.

Accesories
RP-DMR-150	RP-DMR-360

DMR-Mini

REF.	Description	Measurement
DMR-Mini	1 channel dimmer	46 x 12 x 5mm

1 channel dimmer of reduced dimensions.

It works with push-button withcharge (not included).

Preserves state and position memory.

It operates at 12 and 24V.

Accesories
RP-DMR-150	RP-DMR-360

SEN-M

REF.	Description	Measurement
SEN-M	1 channel sensor	51 x 10 x 12mm

Sensor switch.

Detection distance ≤ 2m and detection angle 60°.

ON time is adjustable from 6 to 70 seconds.

Suitable for installation in aluminium profile.

Compatible with profiles: ST4, ST6, ST11, ST12, ST14, ST17, ST18, ST22, ST27, ST31, ST32, ST52, ST55, ST56, ST57 and ST67.

RCR-2

REF.	REF.	Description	Measurement
RCR-2	RC-2*	Control remote	139 x 36 x 11mm
RCR-2	RE-2-5A*	Receiver	33 x 97 x 18mm

*These components can be purchased separately.

2 channels wireless dimmer for Double White LEDs.

Color temperature selector.

Preserves state and position memory.

It allows to link more than one receiver by remote control.

Includes support.

It operates at 12 and 24V. Remote distance 20m.

Accesories
RP-DMR-150	RP-DMR-360

RCR-3

REF.	REF.	Description	Measurement
RCR-3	RC-3*	Control remote	139 x 36 x 11mm
RCR-3	RE-3-4A*	Receiver	33 x 97 x 18mm

*These components can be purchased separately.

3 channels wireless controller for RGB LEDs.

Color and intensity selector.

Preserves state and position memory.

It allows to link more than one receiver by remote control.

Includes support.

It operates at 12 and 24V. Remote distance 20m.

Accesories
RP-DMR-150	RP-DMR-360

PCP

REF.	Description	Measurement
PCP	3 channels controller	125 x 50 x 25mm

Controller for RGB LEDs.

It works with 3 push button without charge (not included).

Selection of 7 fixed colors and 3 speed automatic color change.

Possibility to customize the scenes and sequences and position memory.

Preserves state and position memory.

Accesories
RP-DMR-150	RP-DMR-360

TP-4-4

REF.	Description	Measurement
TP-4-4	Touch panel	86 x 86 x 11,5mm

4 channels touch controller for RGB and RGBW LEDs

Selector of color. It allows to record 4 scenes.

In the RGBW LEDs, you can independently control the white colour channel.

Preserves state and position memory.

It operates at 12 and 24V.

Compatible with european box to recessed.

Accesories
RP-DMR-150	RP-RGB-150	RP-RGBW-150

TPR-4-4

REF.	REF.	Description	Measurement
TPR-4-4	TP-4-4*	Touch panel	86 x 86 x 11,5mm
TPR-4-4	RE-4-3,5A*	Receiver	38 x 114 x 20mm

*These components can be purchased separately.

4 channels touch controller for RGB and RGBW LEDs.

Selector of color. It allows to record 4 scenes.

In the RGBW LEDs, you can independently control the white colour channel.

Preserves state and position memory.

It allows to link more than one receiver by panel.

It operates at 12 and 24V. Remote distance 20m.

Compatible with european box.

Accesories
RP-DMR-150	RP-DMR-360	RP-RGBW-150

RCR-4-4

REF.	REF.	Description	Measurement
RCR-5-4	RC-4-4*	Control remote	122 x 53 x 17,5mm
RCR-5-4	RE-5-3A*	Receiver	38 x 114 x 20mm

*These components can be purchased separately.

4 channels wireless controller for RGB/ RGBW LEDs.

It allows to control 4 zones independently.

Color selector. Selection of 10 scenes including colour changes.

It allows to memorize 2 diferents scenes.

Preserves state and position memory. Includes support.

It operates at 12 and 24V. Remote distance 20m.

Accesories
RP-DMR-150	RP-DMR-360	RP-RGBW-150

RCR-5-4

REF.	REF.	Description	Measurement
RCR-5-4	RC-5-4*	Control remote	122 x 53 x 17,5mm
RCR-5-4	RE-5-3A*	Receiver	38 x 114 x 20mm

5 channels wireless controller for RGBWW LEDs.

It allows to record 2 scenes, link more than one receiver by remote control, control up to 4 zones independently.

Color selector.

Preserves state and position memory.

Includes support for remote control. Remote distance 20m.

It operates to 12V and 24V.

*These components can be purchased separately.

ST59

Profile for recessed of reduced dimensions, perfect for installations with little space.

Compatible with MINI LED model.

Made of extruded and anodized aluminum.

Designed to dissipate LED strips.

For indoor use.

Ref.	Color	Description	Finish
ST59-A	Matt silver	Recessed profile without diffuser	Anodized
ST59-B*	White	Recessed profile without diffuser	Painted
ST59-N*	Black	Recessed profile without diffuser	Anodized

(*) Consult delivery time.

Diffuser	Cap
2100552	End cap with cable hole

ST60

Profile for recessed of reduced dimensions, perfect for installations with little space.

Compatible with MINI LED model.

Made of extruded and anodized aluminum.

Designed to dissipate LED strips.

For indoor use.

Ref.	Color	Description	Finish
ST60-A	Matt silver	Recessed profile without diffuser	Anodized
ST60-B	White	Recessed profile without diffuser	Painted
ST60-N	Black	Recessed profile without diffuser	Anodized

Diffuser	Cap
2100552	End cap left	End cap right

ST61

Profile for recessed plasterboard of reduced dimensions, perfect for installations with little space.

Compatible with MINI LED model.

For indoor use.

Ref.	Color	Description	Finish
ST61-A	Matt silver	Recessed profile without diffuser	Anodized
ST61-B*	White	Recessed profile without diffuser	Painted
ST61-N*	Black	Recessed profile without diffuser	Anodized

(*) Consult delivery time.

Diffuser	Caps
2102252	End cap	End cap with cable hole

Bracket and union pieces
2430070	2430071	2430072

ST62

Profile for recessed plasterboard of reduced dimensions, perfect for installations with little space.

Compatible with MINI LED model.

For indoor use.

Ref.	Color	Description	Finish
ST62-A	Matt silver	Recessed profile without diffuser	Anodized
ST62-B*	White	Recessed profile without diffuser	Painted
ST62-N*	Black	Recessed profile without diffuser	Anodized

(1) Consult delivery time.

Diffuser	Cap
2102252	End cap	End cap with cable hole

Bracket and union piece
2430070	2430071	2430072

ST63

Profile for recessed plasterboard of reduced dimensions, perfect for installations with little space.

Compatible with MINI LED model.

For indoor use.

Ref.	Color	Description	Finish
ST63-A	Matt silver	Recessed profile without diffuser	Anodized
ST63-B*	White	Recessed profile without diffuser	Painted
ST63-N*	Black	Recessed profile without diffuser	Anodized

(*) Consult delivery time.

Diffuser	Cap
2102252	End cap	End cap with cable hole

Bracket and union piece
2430070	2430071	2430072

ST50

Recessed profile.

Made with polycarbonate.

Designed to protect LED strips when they are recessed in a gap.

Ref.	Color	Description	Finish
ST50	Medium frosted	Recessed profile without diffuser	Polycarbonate

ST64

Recessed profile, special for plasterboard.

Made of extruded and anodized aluminum.

Designed to dissipate LED strips.

Ref.	Color	Description	Finish
ST64-A	Matt silver	Recessed profile without diffuser	Anodized
ST64-B*	White	Recessed profile without diffuser	Painted
ST64-N*	Black	Recessed profile without diffuser	Anodized

(*) Consult delivery time.

Diffuser	Cap
2102352	End cap	End cap with cable hole

ST65

Recessed profile, special for plasterboard.

Made of extruded and anodized aluminum.

Designed to dissipate LED strips.

Ref.	Color	Description	Finish
ST65-A	Matt silver	Recessed profile without diffuser	Anodized
ST65-B*	White	Recessed profile without diffuser	Painted
ST65-N*	Black	Recessed profile without diffuser	Anodized

(*) Consult delivery time.

Diffuser	Cap
2102352	End cap	End cap with cable hole

ST66

Plasterboard profile, front.

Made of extruded and anodized aluminum.

Designed to dissipate LED strips.

Ref.	Color	Description	Finish
ST66-A	Matt silver	Recessed profile without diffuser	Anodized
ST66-B	White	Recessed profile without diffuser	Painted
ST66-N	Black	Recessed profile without diffuser	Anodized

Diffuser	Cap		Plate
2101751	End cap	End cap with cable hole	25300102202

Assembly with plate

ST68

Plasterboard profile, front.

Made of extruded and anodized aluminum.

Designed to dissipate LED strips.

Ref.	Color	Description	Finish
ST68-A	Matt silver	Recessed profile without diffuser	Anodized
ST68-B	White	Recessed profile without diffuser	Painted
ST68-N	Black	Recessed profile without diffuser	Anodized

Diffuser	Plate
2101751	25300102202

Cap
Left end cap	Right end cap	Left end cap with cable hole	Right end cap with cable hole

Assembly with plate

ST69

Recessed profile, special for plasterboard.

Made of extruded and anodized aluminum.

Designed to dissipate LED strips.

Ref.	Color	Description	Finish
ST69-A	Matt silver	Recessed profile without diffuser	Anodized
ST69-B*	White	Recessed profile without diffuser	Painted
ST69-N*	Black	Recessed profile without diffuser	Anodized

(*) Consult delivery time.

Diffusers
2100250	2100251	2102552

Caps
End cap left	End cap right	End cap with cable hole left	End cap with cable hole right

ST51

Recessed profile.

Made of extruded and anodized aluminum.

Designed to dissipate LED strips.

Ref.	Color	Description	Finish
ST51-A	Matt silver	Recessed profile without diffuser	Anodized
ST51-B	White	Recessed profile without diffuser	Painted
ST51-N	Black	Recessed profile without diffuser	Anodized

Diffusers
2100250	2100251	2100252	2100202	2100253	2100256

Caps		Bracket and metal fixing piece
End cap with cable hole	End cap with cable hole 3L	232024070	233023070

ST52

Recessed profile.

Made of extruded and anodized aluminum.

Designed to dissipate LED strips.

Ref.	Color	Description	Finish
ST52-A	Matt silver	Recessed profile without diffuser	Anodized
ST52-B	White	Recessed profile without diffuser	Painted
ST52-N	Black	Recessed profile without diffuser	Anodized

Diffusers
2100250	2100251	2100252	2100202	2100256

Cap	Bracket and metal fixing piece
End cap with cable hole	232024070	233023070

ST54

Recessed profile for indirect lighting.

Made of extruded and anodized aluminum.

Designed to dissipate LED strips.

Ref.	Color	Description	Finish
ST54-A	Matt silver	Recessed profile without diffuser	Anodized
ST54-B	White	Recessed profile without diffuser	Painted
ST54-N	Black	Recessed profile without diffuser	Anodized

Diffusers
2100250	2100251	2100252	2100202

Caps		Bracket and union piece
End cap with cable hole left	End cap with cable hole right	232019070

ST57

Recessed profile.

Made of extruded and anodized aluminum.

Designed to dissipate LED strips.

It can be installed in areas where there is foot traffic (walkable).

For outdoor installations or ground installations, LED stips with IP67 protection must be used.

Ref.	Color	Description	Finish
ST57-A	Matt silver	Recessed profile without diffuser	Anodized
ST57-B	White	Recessed profile without diffuser	Painted
ST57-N	Black	Recessed profile without diffuser	Anodized

Diffuser	Cap	Metal fixing piece
2102152	End cap	233023070

Union pieces
2430010	2430011	2430012

ST67

Plasterboard profile, front.

Made of extruded and anodized aluminum.

Designed to dissipate LED strips.

Ref.	Color	Description	Finish
ST67-A	Matt Silver	Recessed profile without diffuser	Anodized
ST67-B	White	Recessed profile without diffuser	Painted
ST67-N	Black	Recessed profile without diffuser	Anodized

Diffuser
2100451	2100402	2100460

Cap		Plate
End cap	End cap with cable hole	25300102202

Assembly with plate

ST56

Recessed profile.

Made of extruded and anodized aluminum.

Designed to dissipate LED strips.

Ref.	Color	Description	Finish
ST56-A	Matt silver	Recessed profile without diffuser	Anodized
ST56-B	White	Recessed profile without diffuser	Painted
ST56-N	Black	Recessed profile without diffuser	Anodized

Diffusers			Cap
2100350	2100351	2100302	End cap

Bracket and union piece
232019070	2410050	2410051	2410052

ST55

Recessed profile.

Made of extruded and anodized aluminum.

Designed to dissipate LED strips.

Ref.	Color	Description	Finish
ST55-A	Matt silver	Recessed profile without diffuser	Anodized
ST55-B	White	Recessed profile without diffuser	Painted
ST55-N	Black	Recessed profile without diffuser	Anodized

Diffusers			Cap	Clamping piece
2100451	2100402	2100460	End cap	232018070

Union pieces
233022070	2410050	2410051	2410052

ST16

Surface profile of reduced dimensions, perfect for installations with little space.

Compatible with MINI LED model.

Made of extruded and anodized aluminum.

Designed to dissipate LED strips.

For indoor use.

Ref.	Color	Description	Finish
ST16-A	Matt silver	Surface profile without diffuser	Anodized
ST16-B	White	Surface profile without diffuser	Painted
ST16-N	Black	Surface profile without diffuser	Anodized

Diffuser	Cap
2100552	End cap

ST24

Surface profile.

Made of extruded and anodized aluminum.

Designed as a LED strip heatsink.

ST24-DO		Opal	Set of plate and diffuser
	ST24-A	Matte silver	Aluminum deck
	2101252	Opal	Polycarbonate diffuser

Cap		Clip
Final cap	End cap with drill	231010070

ST25

Surface profile.

Made of extruded and anodized aluminum.

Designed to dissipate LED strips.

ST25-DO		Frosted	Plate and diffuser set
	ST25-A	Matt silver	Aluminium plate
	2101352	Frosted	Polycarbonate diffuser

Caps		Bracket
End cap	End cap with cable hole	231011070

ST26

Surface profile.

Made of extruded and anodized aluminum.

Designed to dissipate LED strips.

Ref.	Color	Description	Finish
ST26-A	Matt silver	Surface profile without diffuser	Anodized
ST26-B	White	Surface profile without diffuser	Painted
ST26-N	Black	Surface profile without diffuser	Anodized

(*) Please, consult the compatibily table.

Diffuser	Cap		Bracket
2101452	End cap	End cap with cable hole	231012070

ST33

Surface profile.

Made of extruded and anodized aluminum.

Designed to dissipate LED strips.

Ref.	Color	Description	Finish
ST33-A	Matt silver	Surface profile without diffuser	Anodized
ST33-B*	White	Surface profile without diffuser	Painted
ST33-N*	Black	Surface profile without diffuser	Anodized
