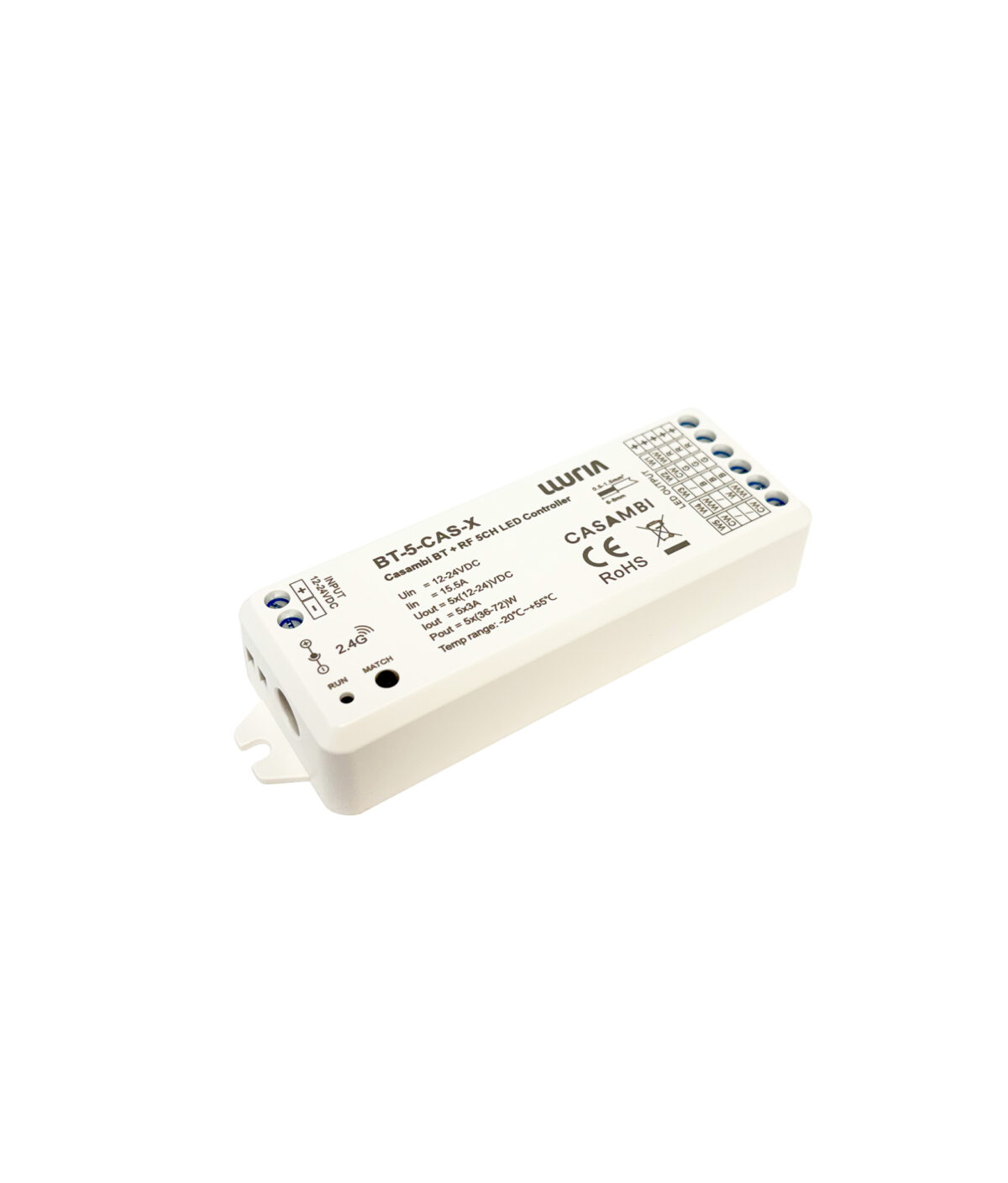

BT-5-CAS-X

REF.	Description	Measurements
BT-5-CAS-X	5-channel converter	114 x 38x 20mm

5-channel Casambi Bluetooth controller for low-voltage LED lighting.

Controls single-colour, CCT, RGB, RGBW and RGB+CCT LED strips via the mobile app or RF remotes, with dimming, scenes, groups, memory, intensity limits and integrated dynamic modes.

Accessories
RP-DMR-150	Repeater	124 x 50 x 25mm
RP-DMR-360	Repeater	87 x 21 x 8,5mm
RP-RGB-150	Repeater	124 x 50 x 25mm
RP-RGB-300	Repeater	87 x 21 x 8,5mm
RP-RGB-360	Repeater	124 x 50 x 25mm
RP-RGBW- 150	Repeater	124 x 50 x 25mm
RP-RGBW- 300	Repeater	87 x 21 x 8,5mm

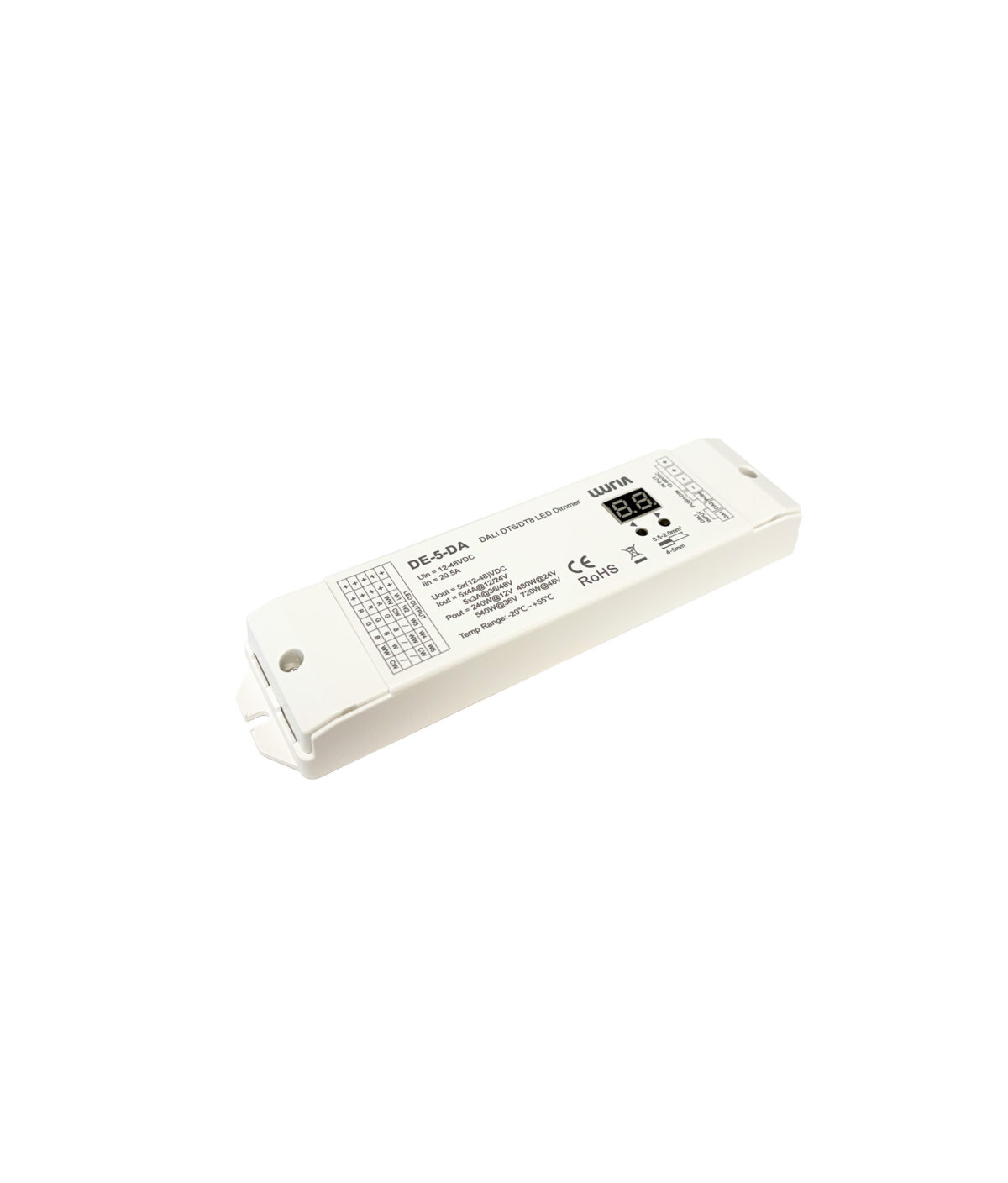

DE-5-DA

REF.	Description	Measurement
DE-5-DA	5-channel DALI LED converter	153 x 50 x 23mm

5-channel DALI LED converter with digital display for constant-voltage systems.

Accessories
RP-DMR-150	Repeater	124 x 50 x 25mm
RP-DMR-360	Repeater	87 x 21 x 8,5mm
RP-RGB-150	Repeater	124 x 50 x 25mm
RP-RGB-300	Repeater	87 x 21 x 8,5mm
RP-RGB-360	Repeater	124 x 50 x 25mm
RP-RGBW- 150	Repeater	124 x 50 x 25mm
RP-RGBW- 300	Repeater	87 x 21 x 8,5mm
TP-DA	DALI screen	86 x 86 x 27,1mm

MO25

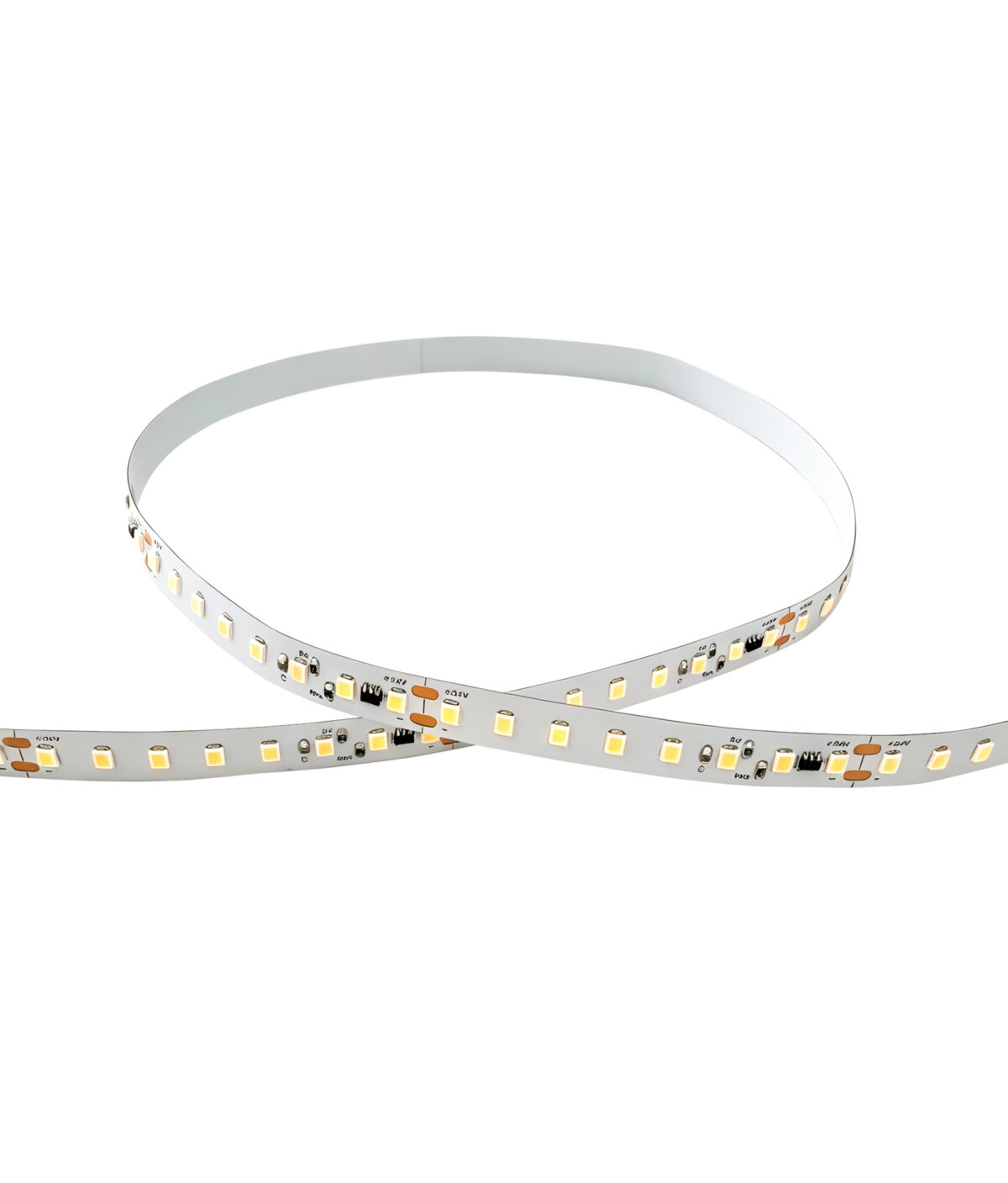

REF.	CCT(K)	lm/m	lm/W
MO25-23	2300K	2700	108
MO25-27	2700K	3375	135
MO25-30	3000K	3500	140
MO25-40	4000K	3750	150
MO25-60	6000K	3875	155

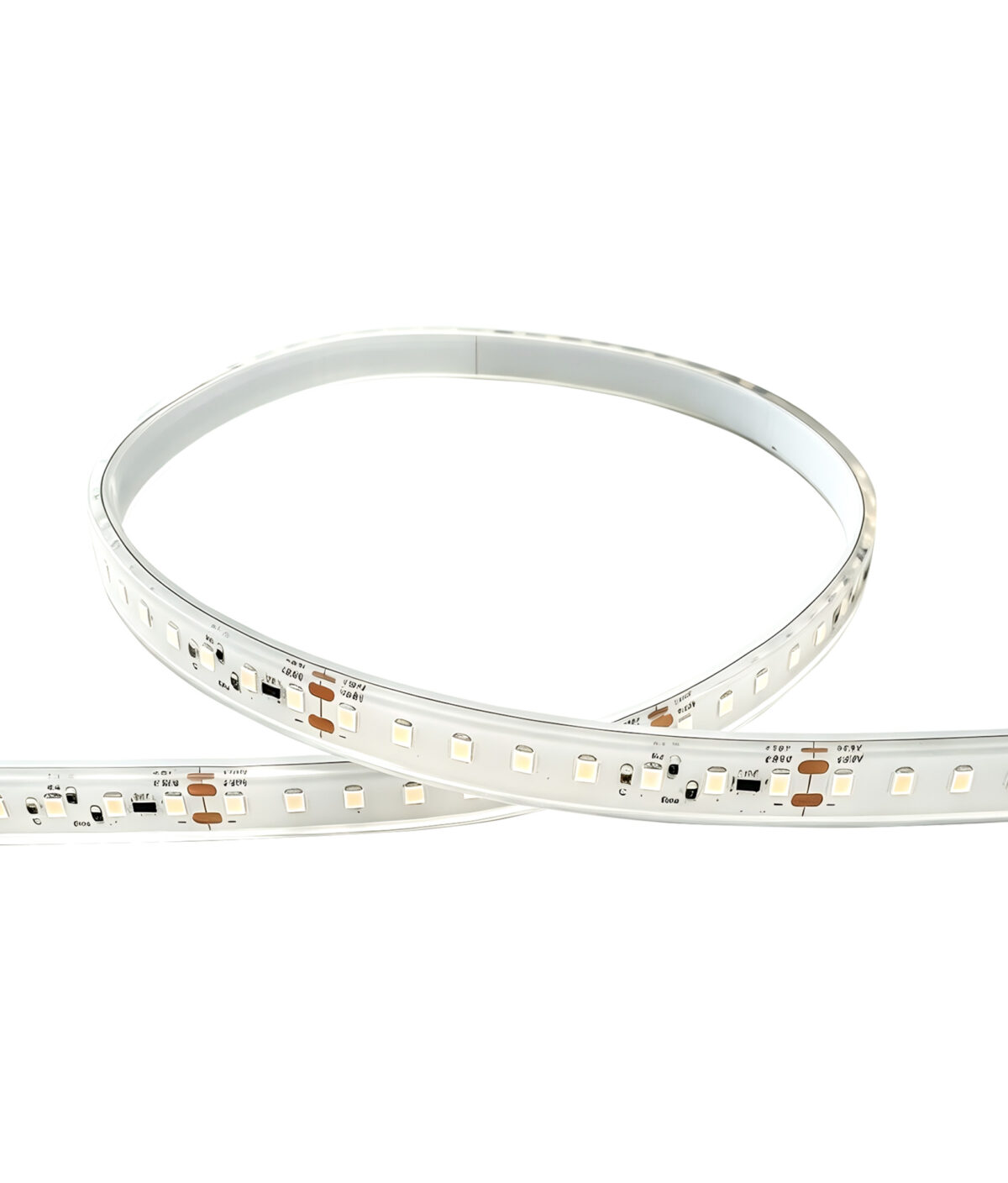

LX25

REF.	CCT(K)	lm/m	lm/W
LX25-23	2300K	2250	102
LX25-27	2700K	3200	128
LX25-30	3000K	3325	133
LX25-40	4000K	3550	142
LX25-60	6000K	3650	146

BASE WITHOUT DRILL

Ref.	Description	Finish
69025027	Solid base 300x48x42mm	Matt silver
69025021	Solid base 300x48x42mm	White
69025022	Solid base 300x48x42mm	Black

Ref.	Description	Finish
69025037	Solid base 390x55x42mm	Matt silver
69025031	Solid base 390x55x42mm	White
69025032	Solid base 390x55x42mm	Black

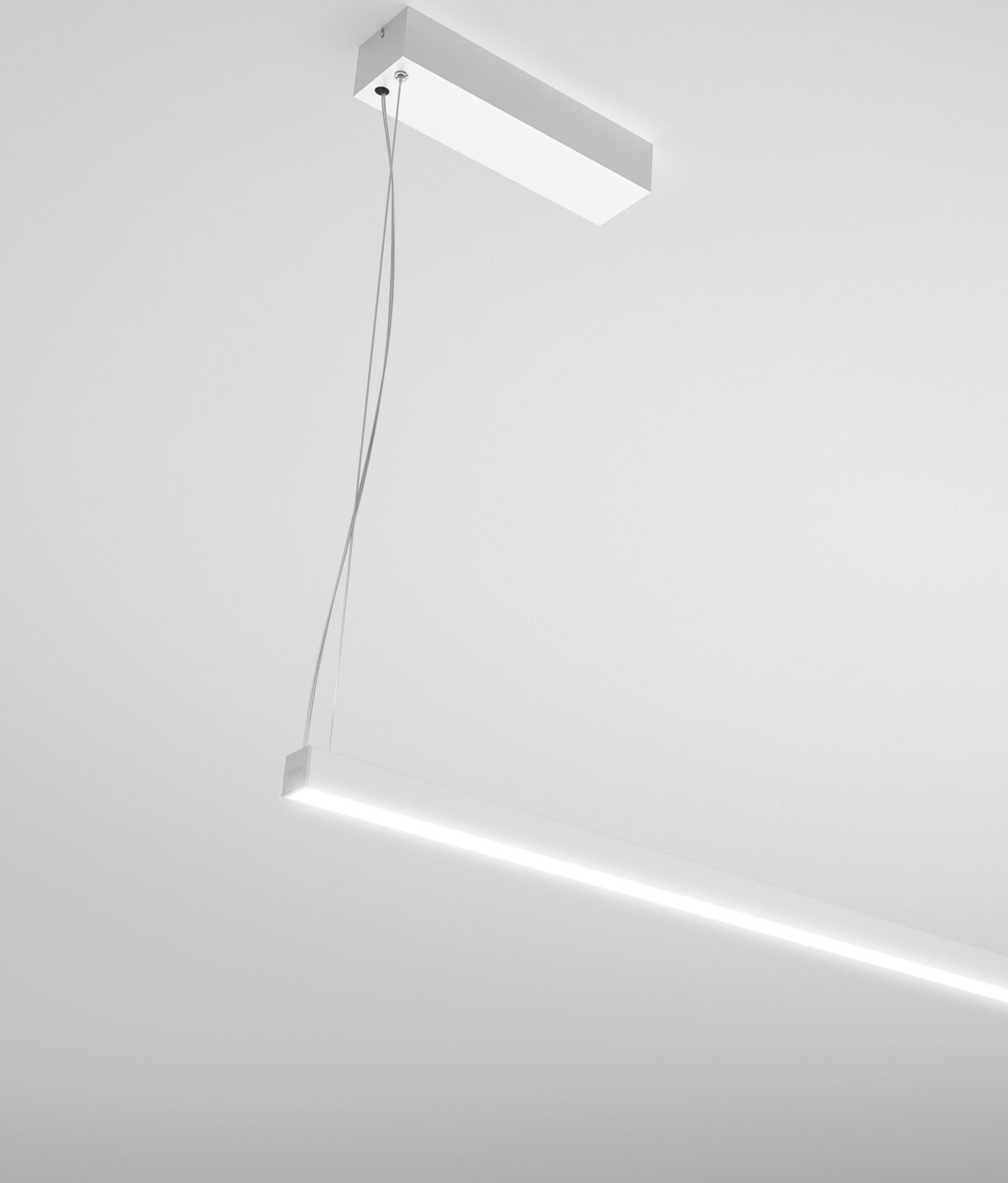

SUSPENSION BASE KIT

Ref.	Finish
KSB1030	White	30W 24V
KSB2030	Black	30W 24V
KSB7030	Matt silver	30W 24V

Ref.	Finish
KSB1075	White	75W 24V
KSB2075	Black	75W 24V
KSB7075	Matt silver	75W 24V

Ref.	Finish
KSB1120	White	120W 24V
KSB2120	Black	120W 24V
KSB7120	Matt silver	120W 24V

DECORATIVE DISC KIT

Ref.	Finish
KSA1030	White	30W 24V
KSA2030	Black	30W 24V
KSA7030	Matt silver	30W 24V

Ref.	Finish
KSA1075	White	75W 24V
KSA2075	Black	75W 24V
KSA7075	Matt silver	75W 24V

Ref.	Finish
KSA1120	White	120W 24V
KSA2120	Black	120W 24V
KSA7120	Matt silver	120W 24V

BASE WITH DRILLS

Ref.	Description	Finish
69015027	Base 300x48x42mm	Matt silver
69015021	Base 300x48x42mm	White
69015022	Base 300x48x42mm	Black

Ref.	Description	Finish
69015037	Base 390x55x42mm	Matt silver
69015031	Base 390x55x42mm	White
69015032	Base 390x55x42mm	Black

LX19

REF.	CCT(K)	lm/m	lm/W
LX19-23	2300K	2375	125
LX19-27	2700K	2527	133
LX19-30	3000K	2622	138
LX19-40	4000K	2774	146
LX19-60	6000K	2850	150

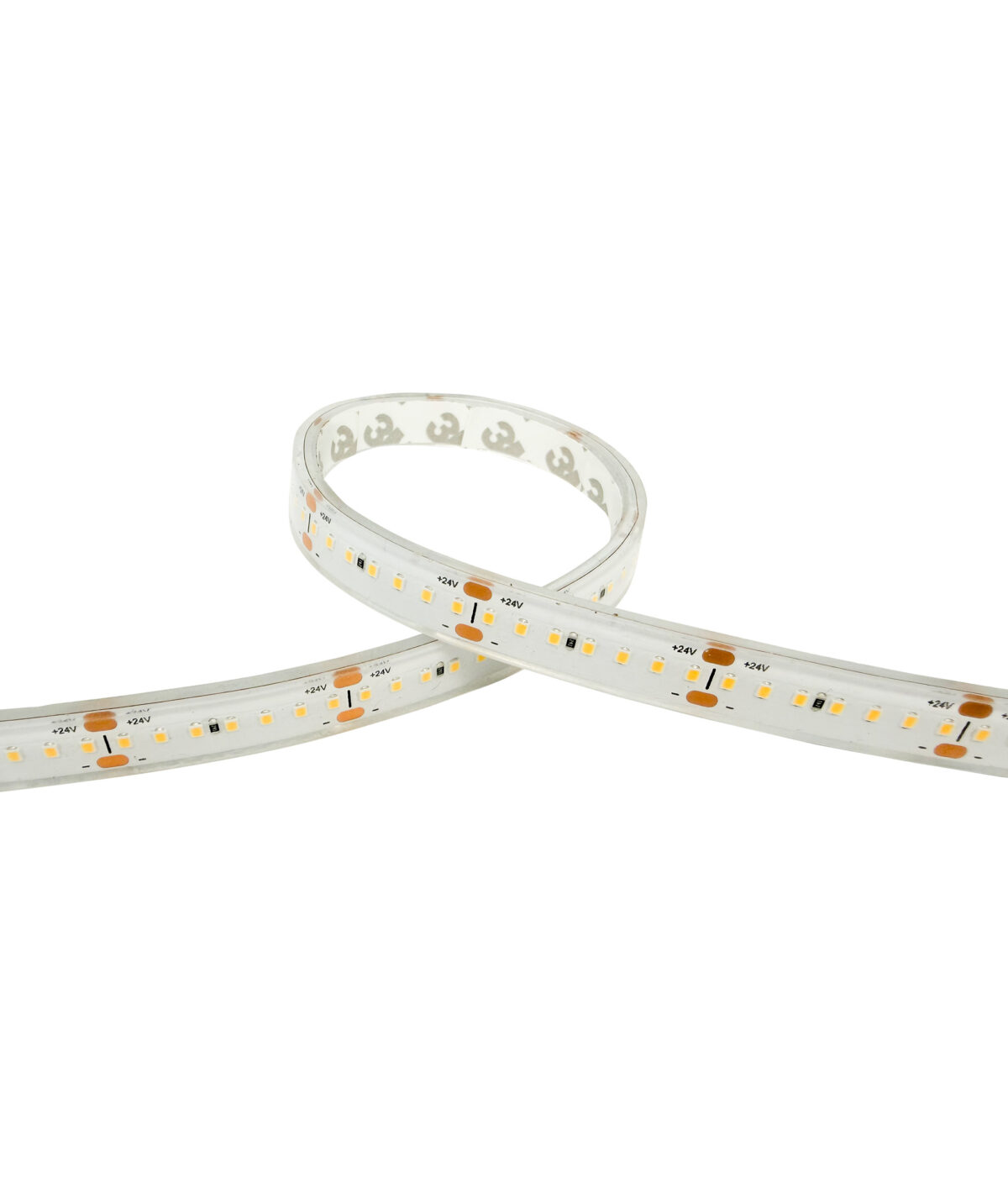

LX14

REF.	CCT(K)	lm/m	lm/W
LX14-23	2300K	1652	118
LX14-27	2700K	1957	129
LX14-30	3000K	2002	143
LX14-40	4000K	2116	151
LX14-60	6000K	2170	155

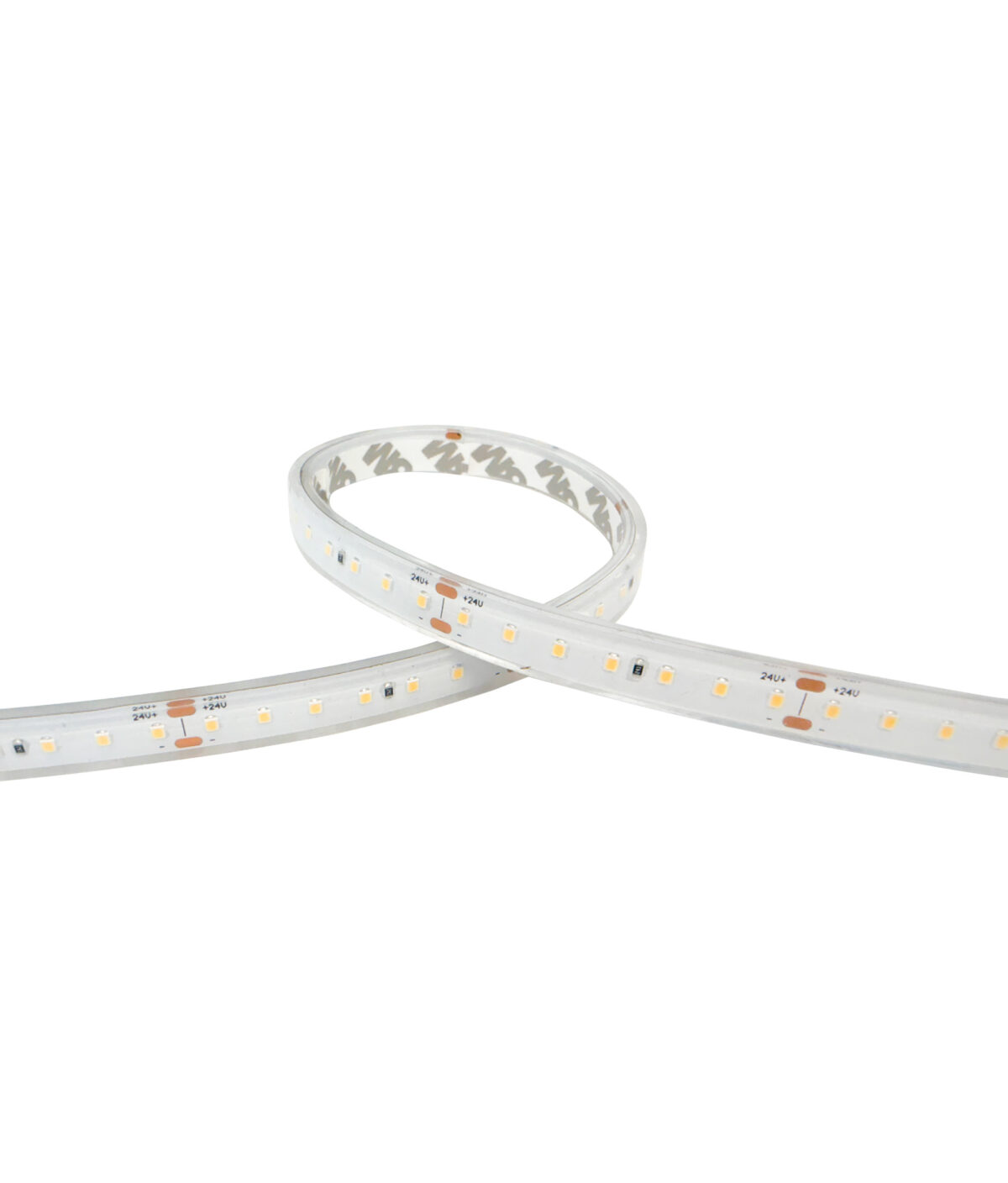

LX10

REF.	CCT(K)	lm/m	lm/W
LX10-23	2300K	1180	118
LX10-27	2700K	1290	129
LX10-30	3000K	1360	136
LX10-40	4000K	1390	139
LX10-60	6000K	1430	143

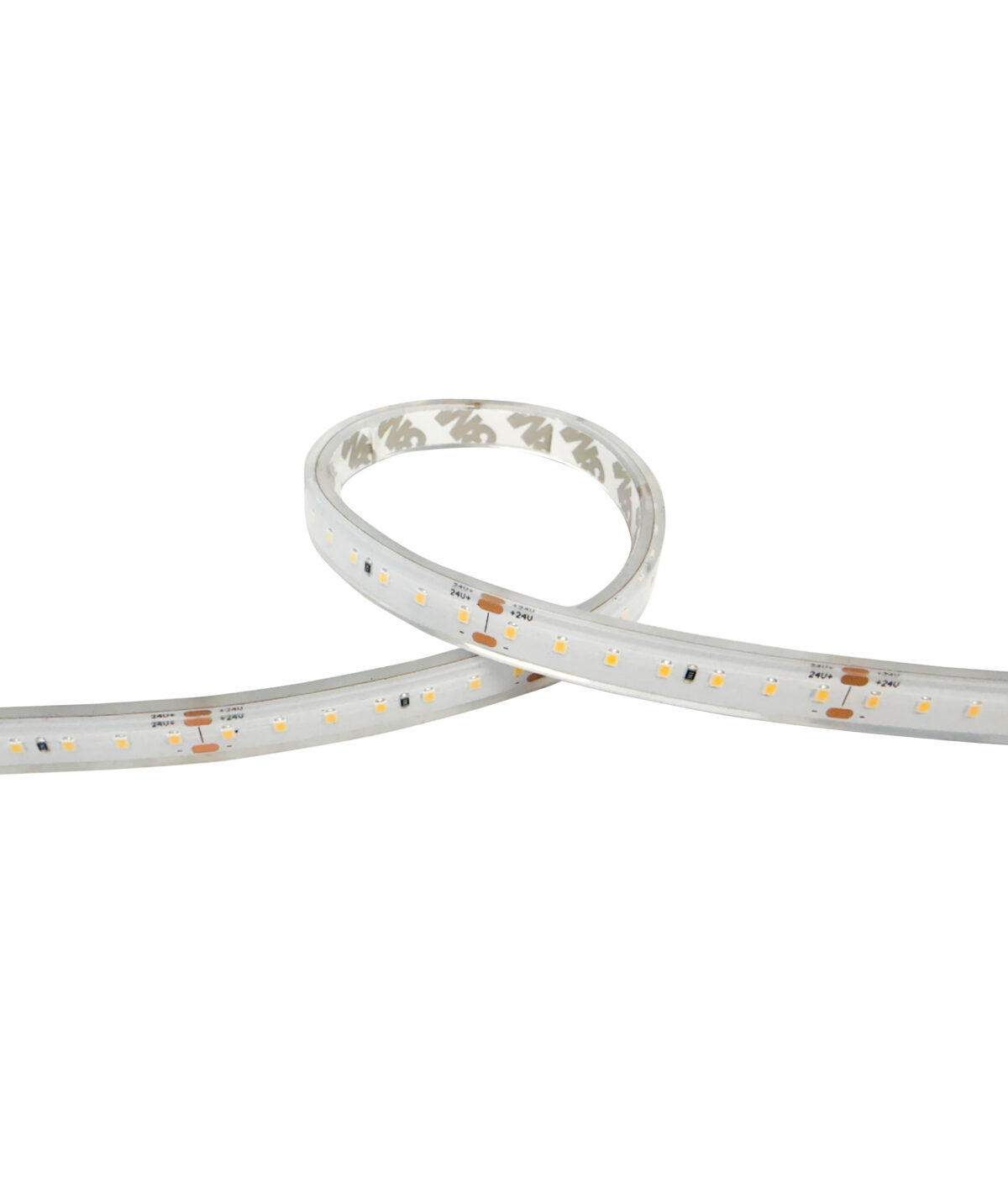

LX7

REF.	CCT(K)	lm/m	lm/W
LX7-23	2300K	875	125
LX7-27	2700K	931	133
LX7-30	3000K	994	142
LX7-40	4000K	1008	144
LX7-60	6000K	1036	148

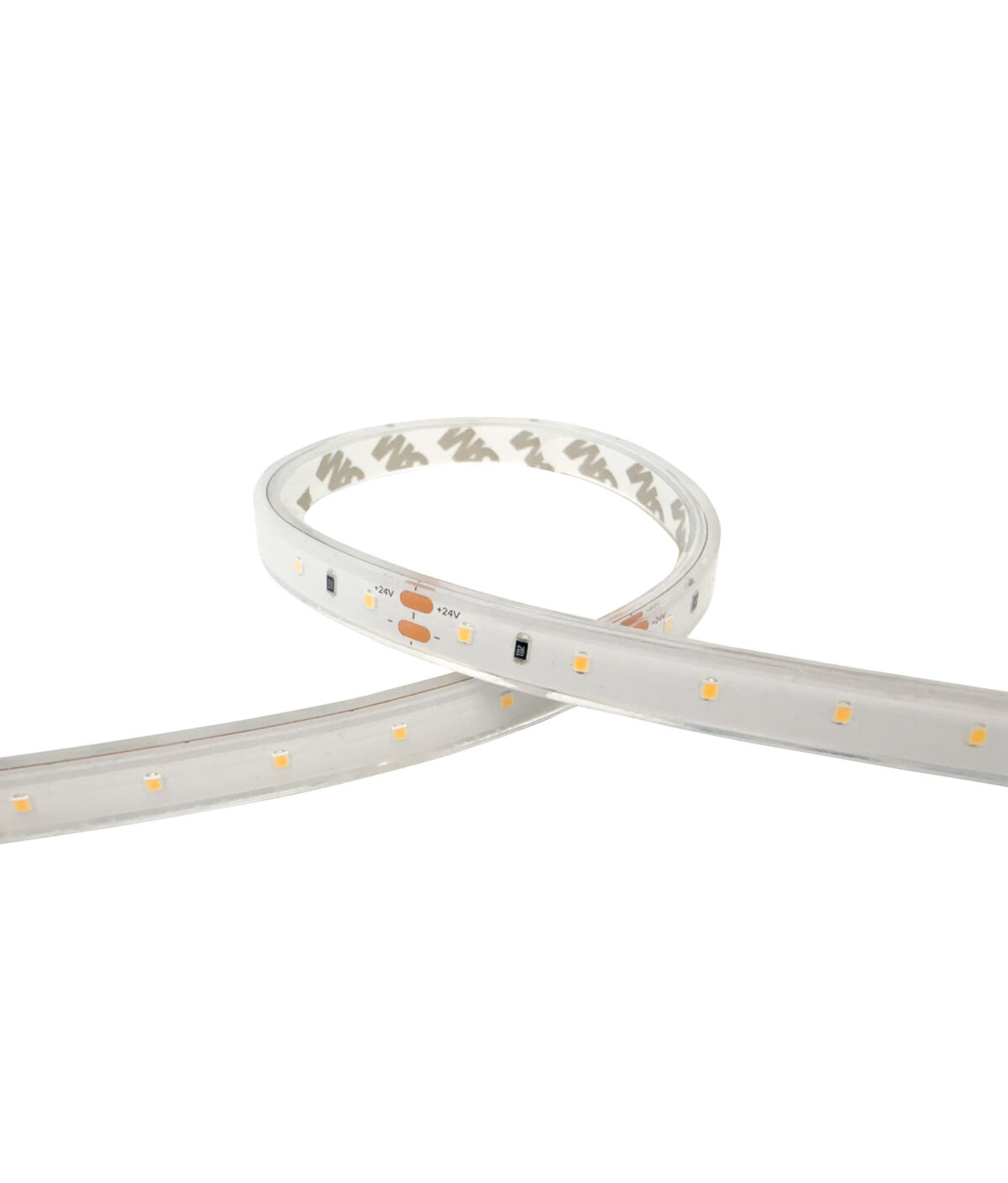

LX3

REF.	CCT(K)	lm/m	lm/W
LX3-23	2300K	375	125
LX3-27	2700K	399	133
LX3-30	3000K	420	140
LX3-40	4000K	429	143
LX3-60	6000K	444	148

MO19

REF.	CCT(K)	lm/m	lm/W
MO19-23	2300K	2603	137
MO19-27	2700K	2755	145
MO19-30	3000K	2888	152
MO19-40	4000K	2983	157
MO19-60	6000K	3078	162

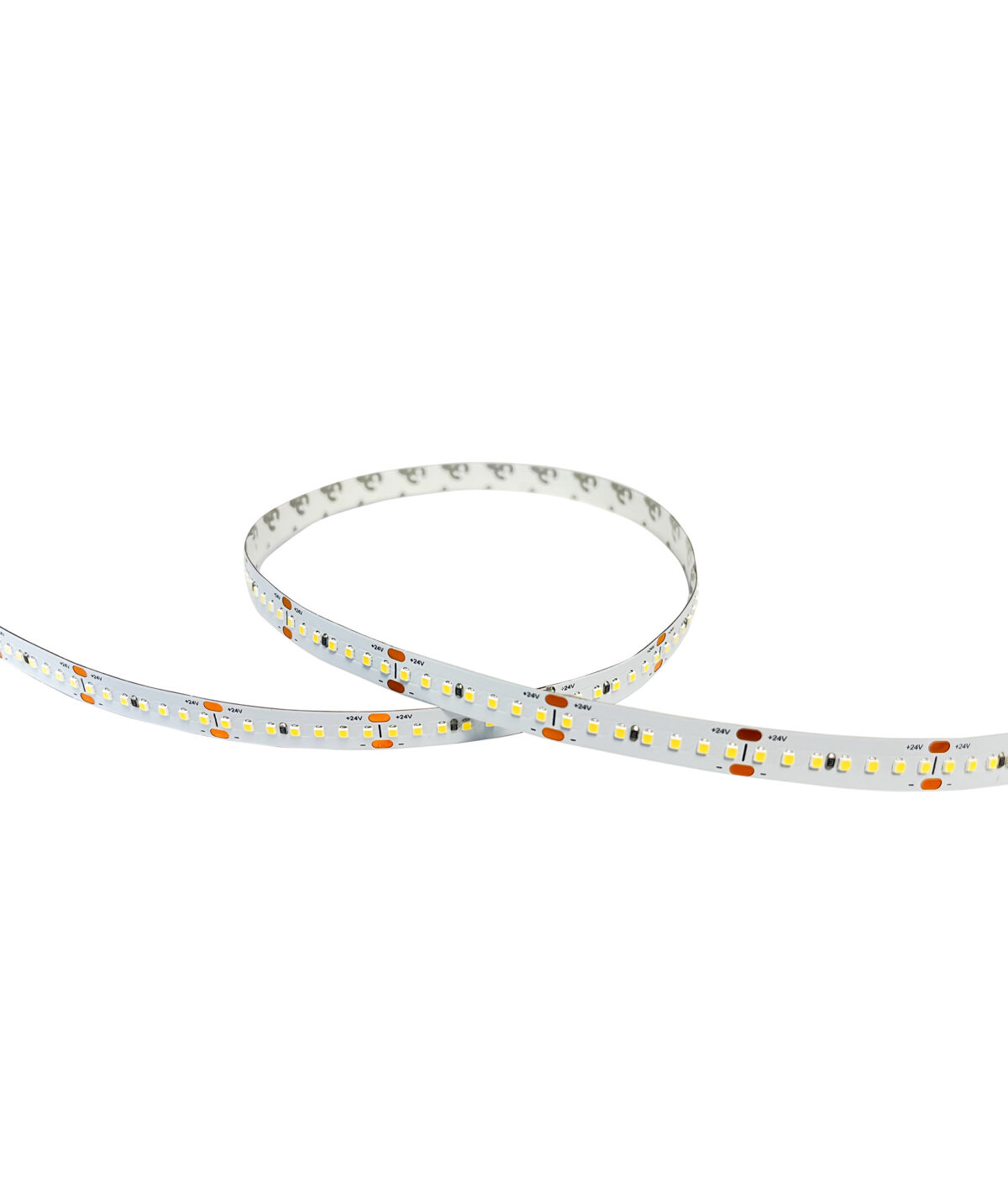

MO14

REF.	CCT(K)	lm/m	lm/W
MO14-23	2300K	1932	138
MO14-27	2700K	2044	146
MO14-30	3000K	2142	153
MO14-40	4000K	2212	158
MO14-60	6000K	2282	163

MO10

REF.	CCT(K)	lm/m	lm/W
MO10-23	2300K	1380	138
MO10-27	2700K	1469	146
MO10-30	3000K	1530	153
MO10-40	4000K	1579	158
MO10-60	6000K	1630	163

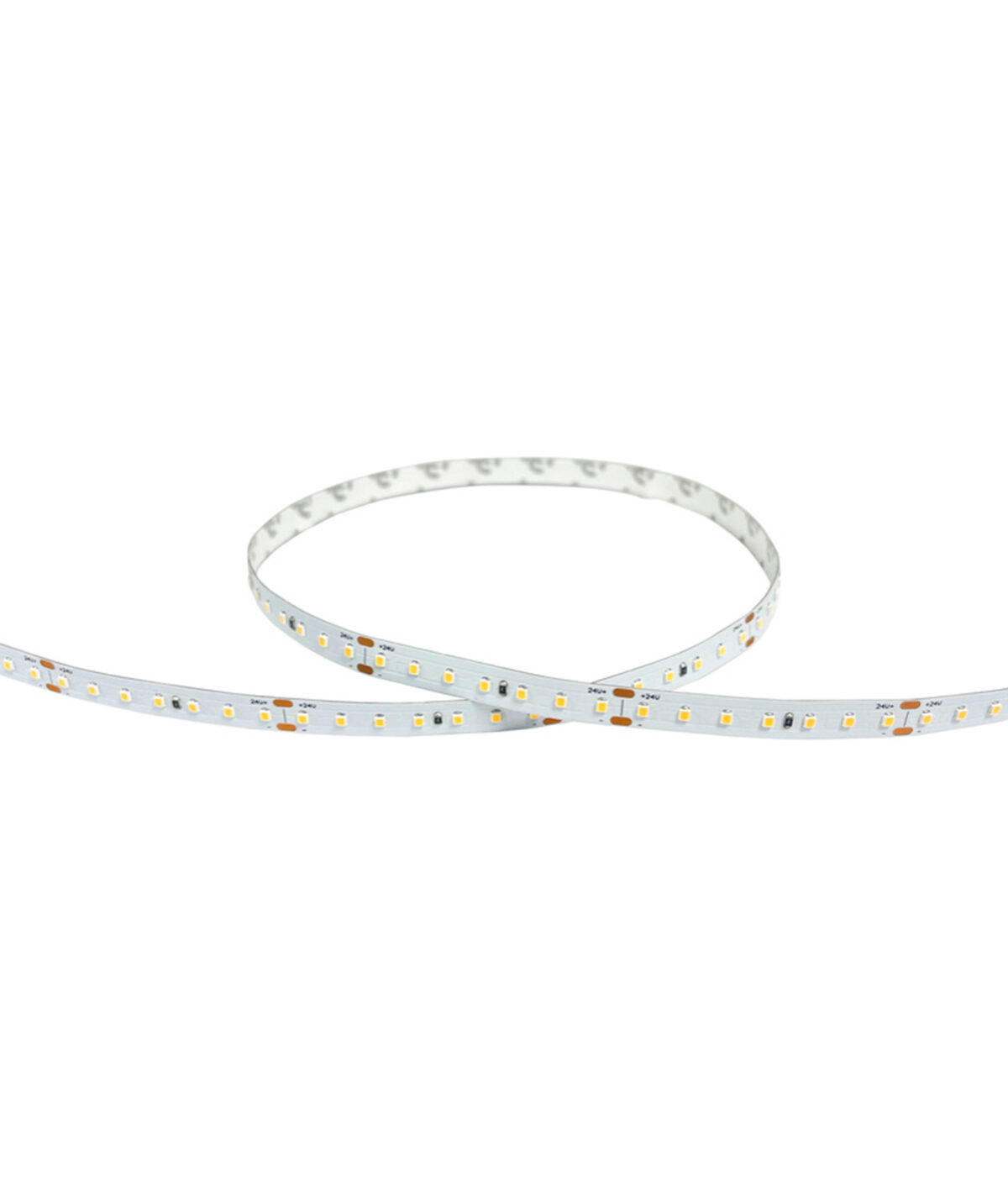

MO7

REF.	CCT(K)	lm/m	lm/W
MO7-23	2300K	987	141
MO7-27	2700K	1043	149
MO7-30	3000K	1100	157
MO7-40	4000K	1141	163
MO7-60	6000K	1176	168

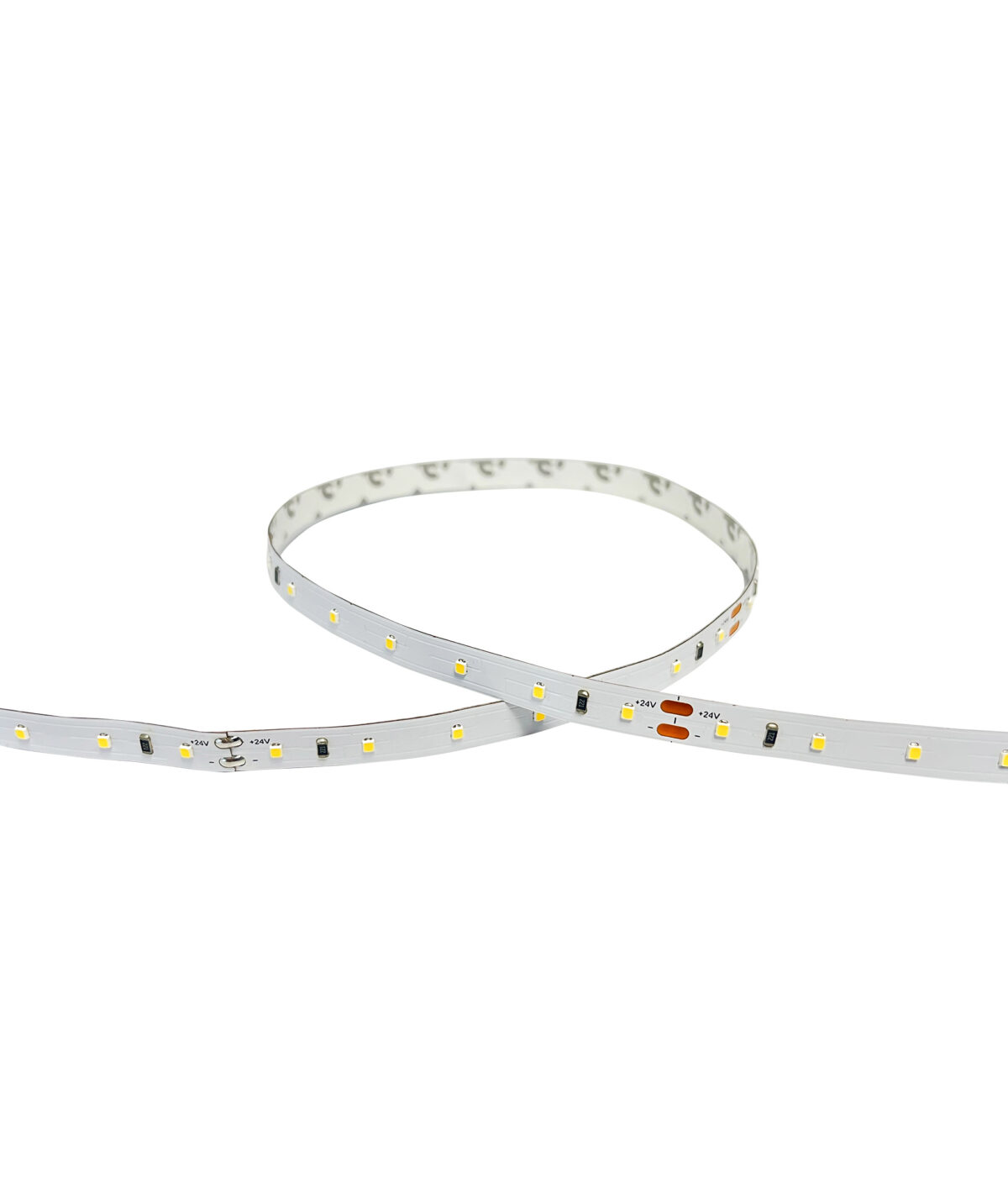

MO3

REF.	CCT(K)	lm/m	lm/W
MO3-23	2300K	420	138
MO3-27	2700K	438	146
MO3-30	3000K	460	153
MO3-40	4000K	470	156
MO3-60	6000K	484	161

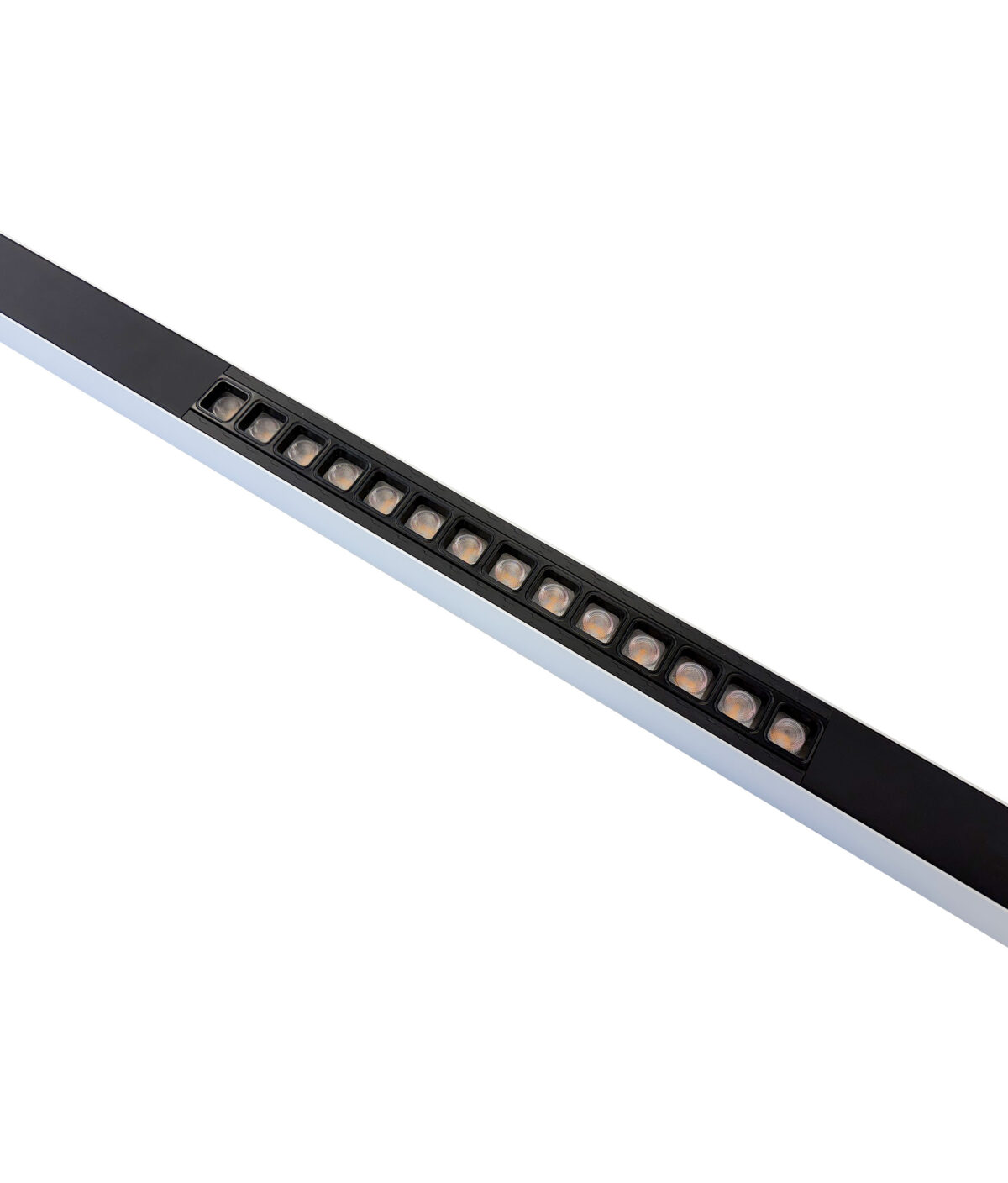

KIT UGR<19

	Ref.	Description	Finish	LED	Lm/W	Dimmable
KIT 280	6010107830102	KIT UGR 292mm 50º 7W	Black	3000K	160lm/W	ON-OFF
	6010107830202	KIT UGR 292mm 50º 7W	Black	3000K	160lm/W	DALI
	6010107840102	KIT UGR 292mm 50º 7W	Black	4000K	170lm/W	ON-OFF
	6010107840202	KIT UGR 292mm 50º 7W	Black	4000K	170lm/W	DALI

	Ref.	Description	Finish	LED	Lm/W	Dimmable
KIT 280 + 2 TAPAS	6011107830102	KIT UGR 592mm 50º 7W	Black	3000K	160lm/W	ON-OFF
	6011107830202	KIT UGR 592mm 50º 7W	Black	3000K	160lm/W	DALI
	6011107840102	KIT UGR 592mm 50º 7W	Black	4000K	170lm/W	ON-OFF
	6011107840202	KIT UGR 592mm 50º 7W	Black	4000K	170lm/W	DALI

	Ref.	Description	Finish	LED	Lm/W	Dimmable
KIT 560	6020113830102	KIT UGR 572mm 50º 14W	Black	3000K	160lm/W	ON-OFF
	6020113830202	KIT UGR 572mm 50º 14W	Black	3000K	160lm/W	DALI
	6020113840102	KIT UGR 572mm 50º 14W	Black	4000K	170lm/W	ON-OFF
	6020113840202	KIT UGR 572mm 50º 14W	Black	4000K	170lm/W	DALI

	Ref.	Description	Finish	LED	Lm/W	Dimmable
KIT 560 + 2 TAPAS	6021113830102	KIT UGR 872mm 50º 14W	Black	3000K	160lm/W	ON-OFF
	6021113830202	KIT UGR 872mm 50º 14W	Black	3000K	160lm/W	DALI
	6021113840102	KIT UGR 872mm 50º 14W	Black	4000K	170lm/W	ON-OFF
	6021113840202	KIT UGR 872mm 50º 14W	Black	4000K	170lm/W	DALI

SEN-PM

REF.	Description	Measurement

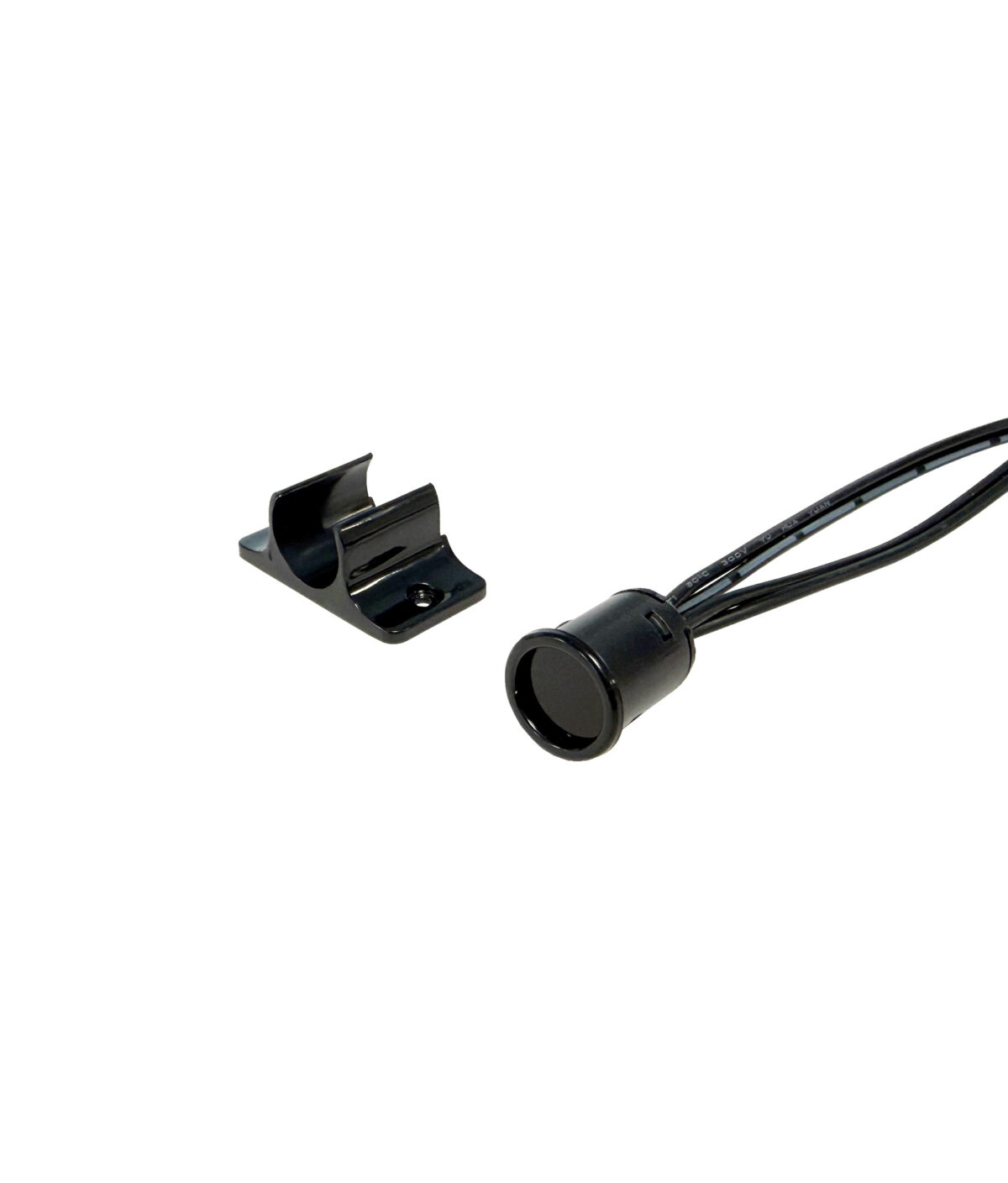

SEN-PM	Recessed or surface proximity sensor	Ø8mm

Proximity sensor for recessed or surface mounting.

Detection distance ≤8 cm and detection angle 20º.

Ideal for doors, drawers and cupboards.

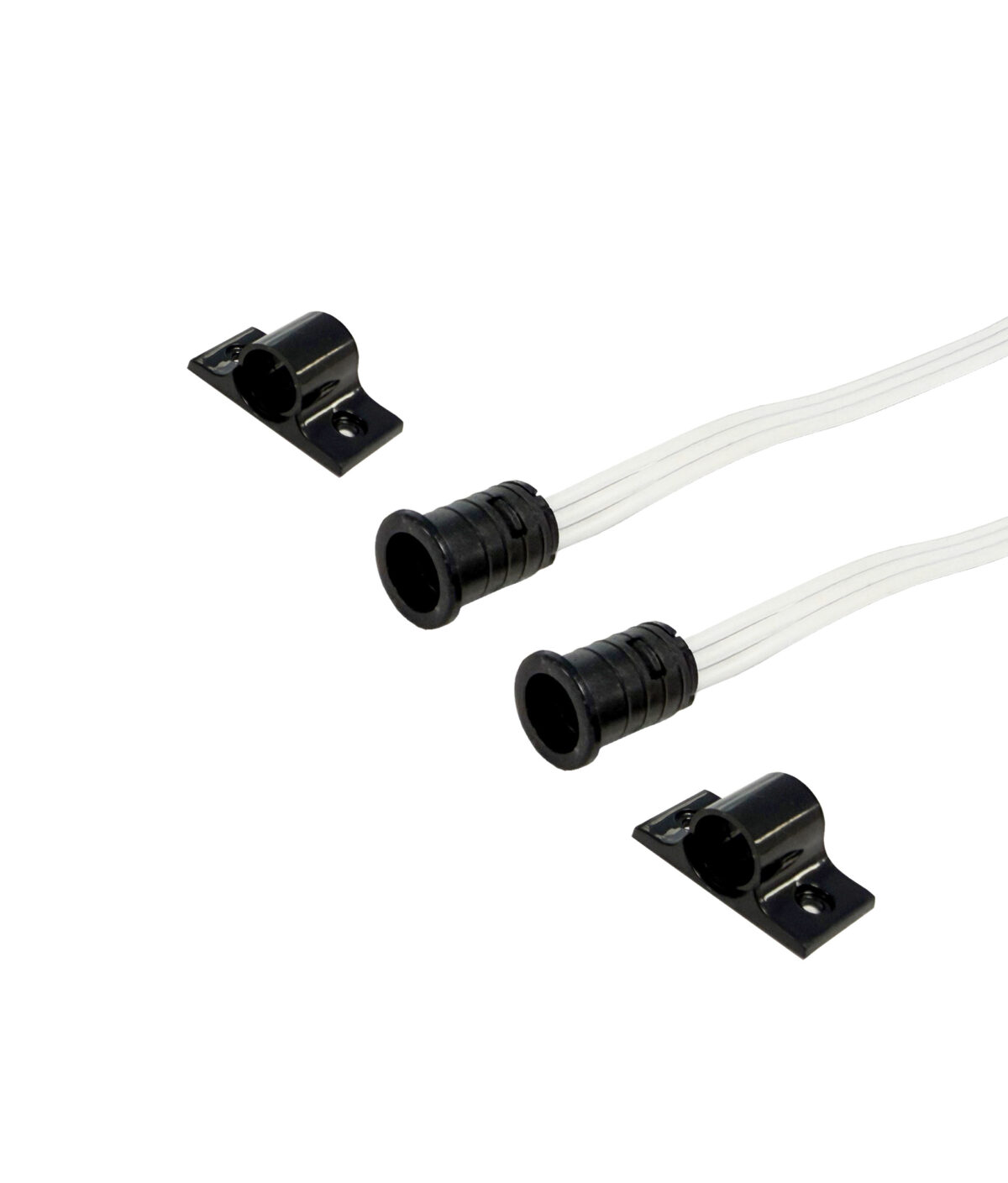

SEN-P2

REF.	Description	Measurement
SEN-P2	Recessed or surface proximity dual sensor	Ø8mm

Dual proximity sensor for recessed mounting or surface mounting.

Detection distance ≤8cm and detection angle 20º.

Ideal for double-door cupboards and sliding doors.

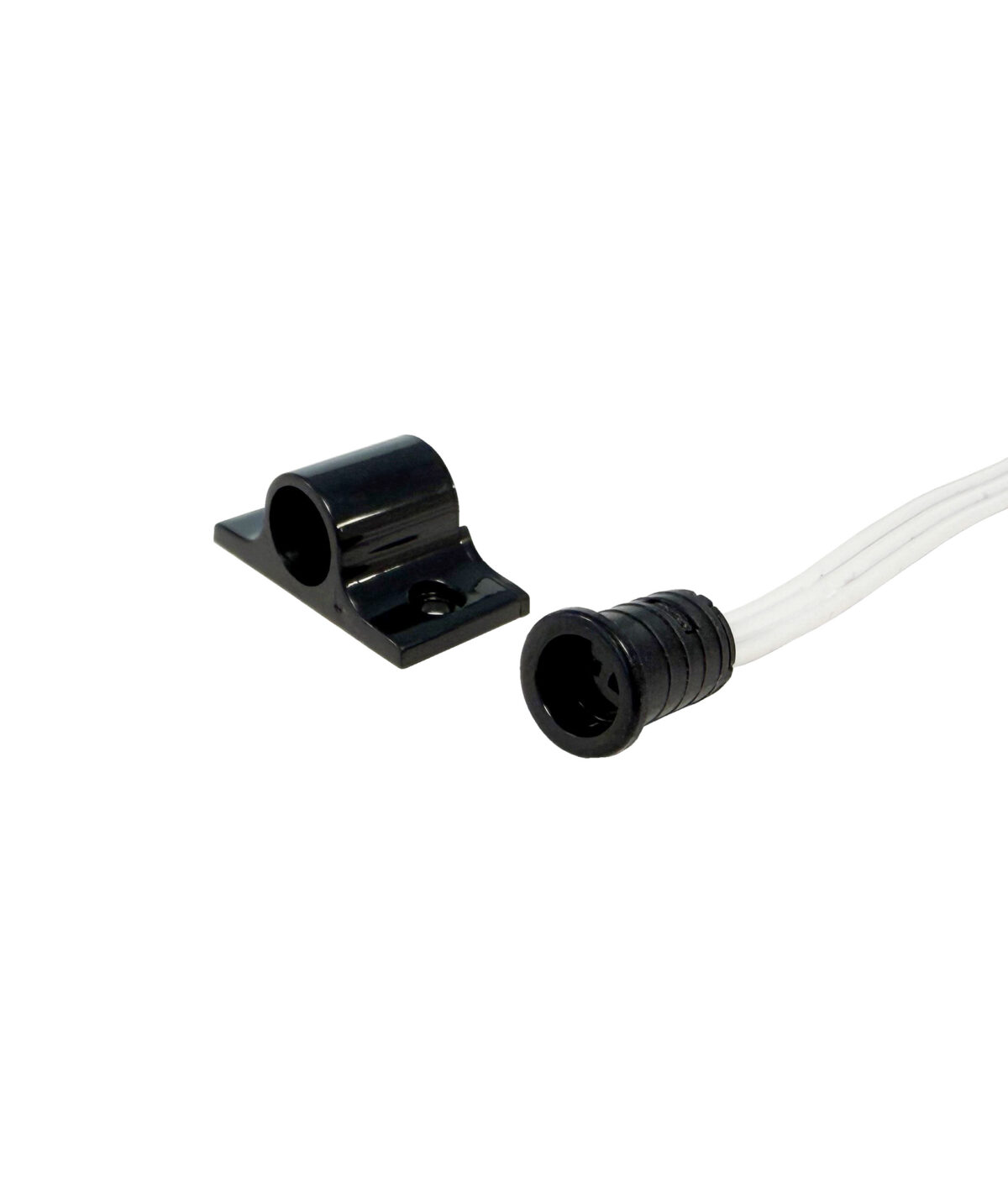

SEN-P

REF.	Description	Measurement
SEN-P	Recessed or surface proximity sensor	Ø8mm

Proximity sensor for recessed or surface mounting.

Detection distance ≤8 cm and detection angle 20º.

Ideal for doors, drawers and cupboards.

SEN-M-SE

REF.	Description	Measurement

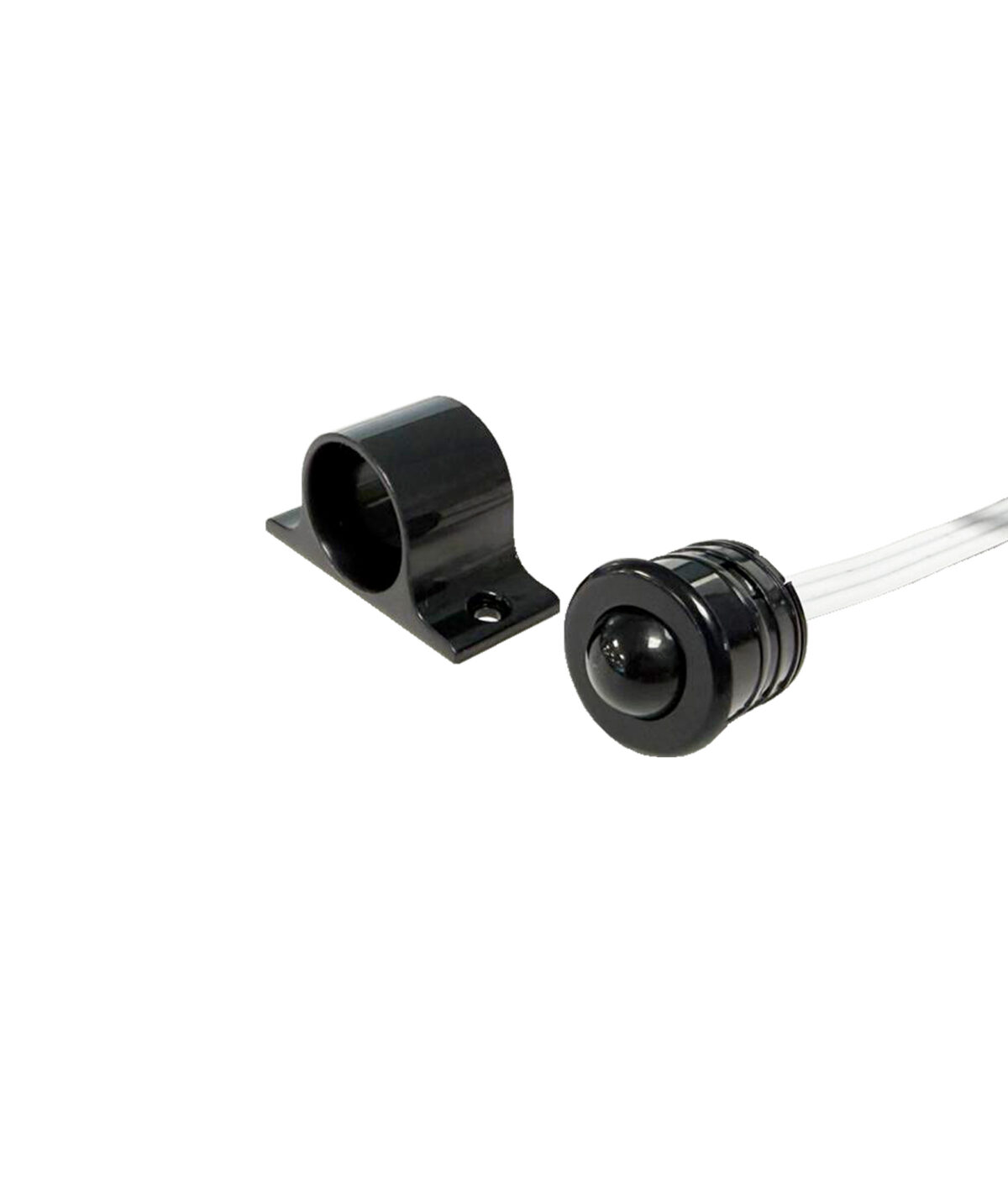

SEN-M-SE	Surface and recessed PIR sensor	Ø 14mm

Surface-mounted motion sensor for recessed or surface installation.

Detection distance ≤3m and detection angle 120º.

On time 30 seconds.

ST35 Plus

Surface profile

Made of extruded and anodized aluminum

Designed to dissipate LED strips.

Ref.	Descripción	Acabado	Color
ST35P-A	Aluminium surface profile	Anodized	Matt silver
ST35P-B	Aluminium surface profile	Painted	White
ST35P-N	Aluminium surface profile	Anodized	Black

Diffusers
2100250	2100251	2100252	2100202	2100256

End cap		Fixing piece	Alignment kit
220730107	220730207	235027074	246017000

PP14,4 RGB

REF.	CCT(K)	lm/m	lm/W
PP14,4-RGB	Rojo	166	34
	Verde	429	89
	Azul	93	19

PR14,4 RGB

REF.	CCT(K)	lm/m	lm/W
PR14,4-RGB	Red	172	35
	Green	435	90
	Blue	95	19

PR7,2 RGB

REF.	CCT(K)	lm/m	lm/W
PR7,2 RGB	Red	75	31
	Green	190	79
	Blue	39	16

PW19.2

REF.	CCT(K)	lm/m	lm/W
PW19,2-27	2700K	1728	90
PW19,2-30	3000K	1804	94
PW19,2-40	4000K	1977	103

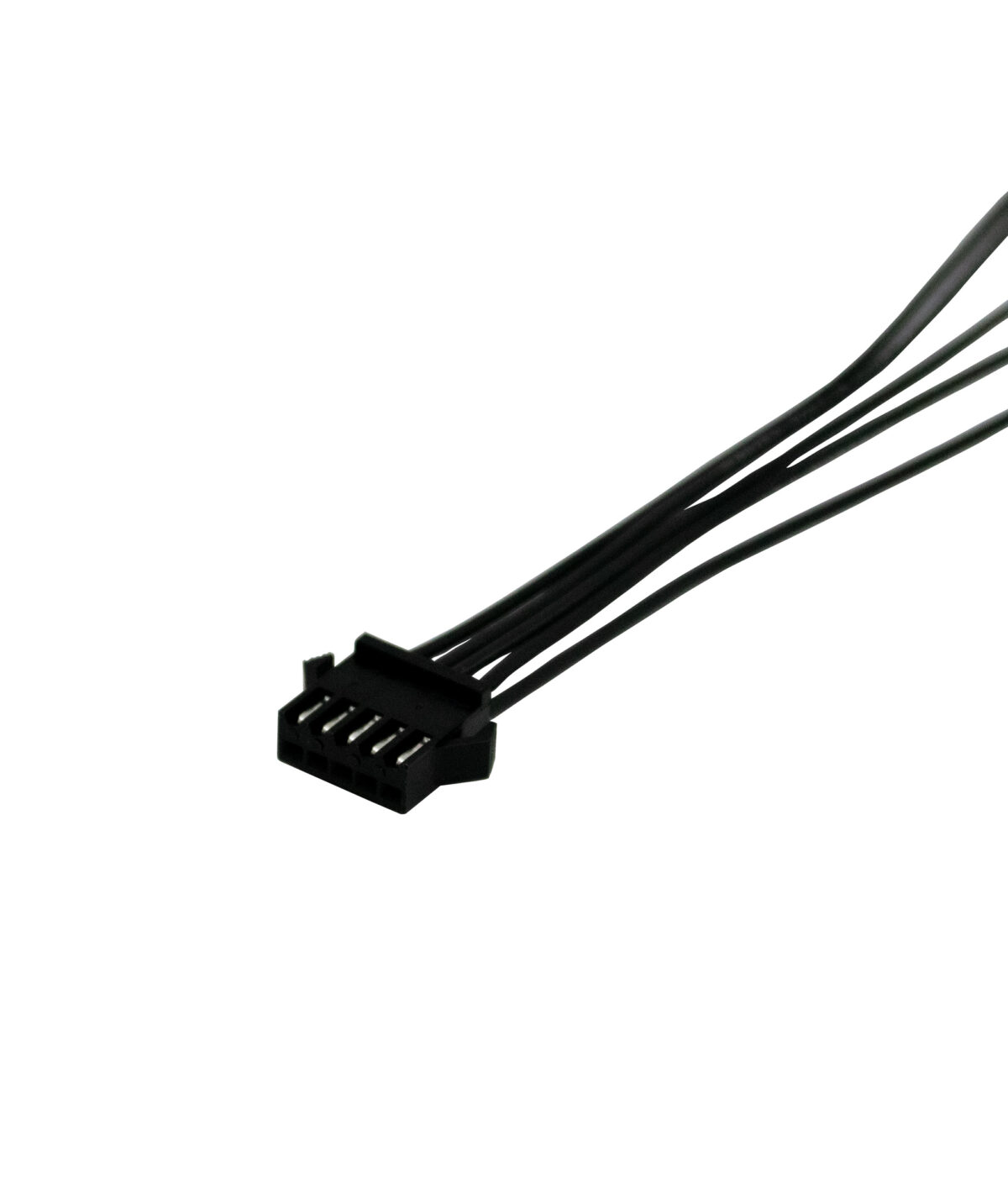

111101051015

	REF.	Description

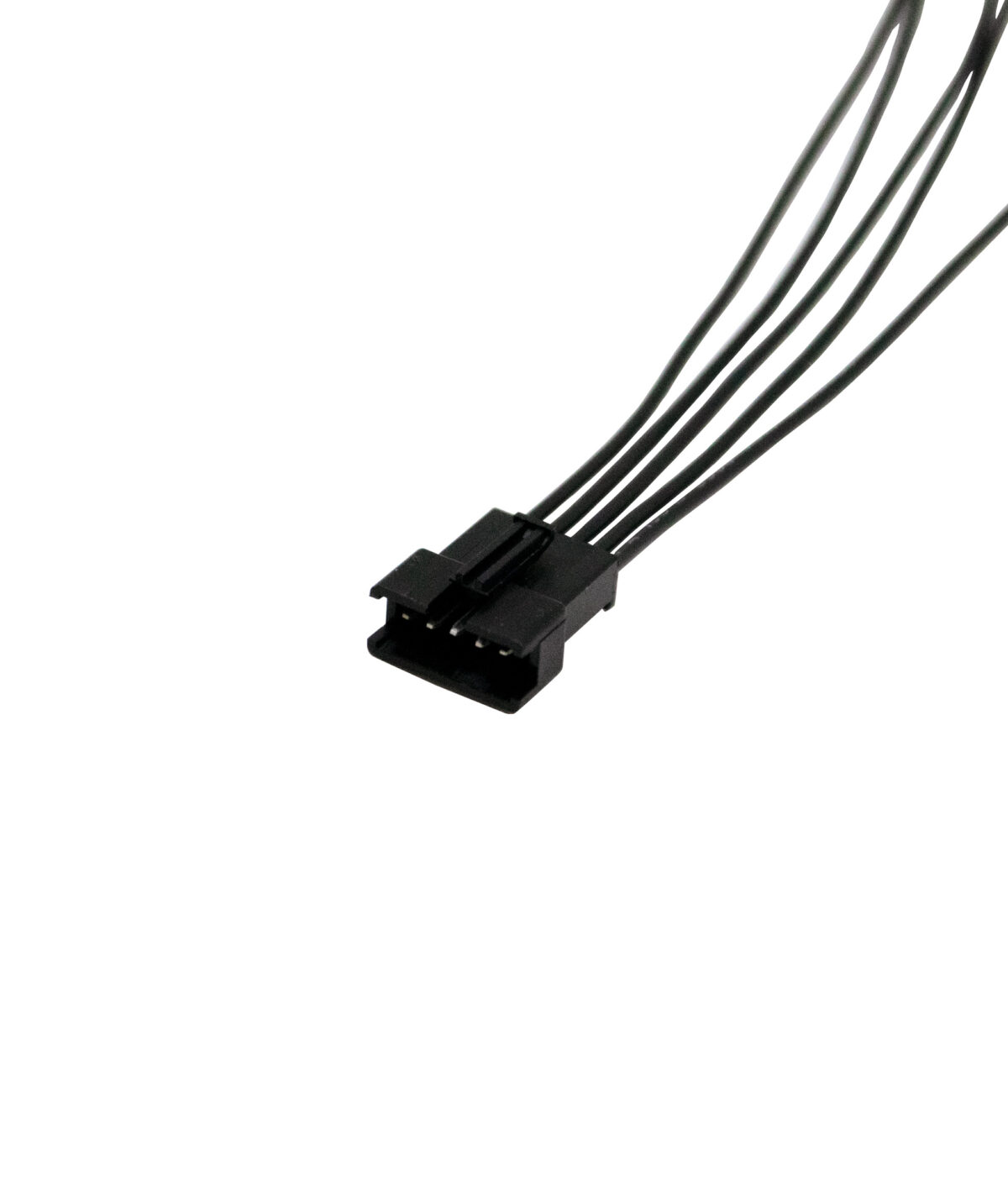

Welded connectors	111101051015	5 threads cable with male connector

111101052015

	REF.	Description
Welded connectors	111101052015	5 threads cable with female connector

PW14,4

REF.	CCT(K)	lm/m	lm/W
PW14,4-27	2700K	1195	83
PW14,4-30	3000K	1224	85
PW14,4-40	4000K	1454	101

PW9,6

REF.	CCT(K)	lm/m	lm/W
PW9,6-27	2700K	825	86
PW9,6-30	3000K	854	89
PW9,6-40	4000K	931	97

PW4,8

REF.	CCT(K)	lm/m	lm/W
PW4,8-27	2700K	398	83
PW4,8-30	3000K	427	89
PW4,8-40	4000K	480	100

PR9,6

REF.	CCT(K)	lm/m	lm/W
PR9,6-27	2700K	844	88
PR9,6-30	3000K	892	93
PR9,6-40	4000K	1065	111

PR4,8

REF.	CCT(K)	lm/m	lm/W
PR4,8-27	2700K	427	89
PR4,8-30	3000K	460	96
PR4,8-40	4000K	542	113

PR19,2

REF.	CCT(K)	lm/m	lm/W
PR19,2-27	2700K	1766	92
PR19,2-30	3000K	1824	95
PR19,2-40	4000K	2093	109

PR14,4

REF.	CCT(K)	lm/m	lm/W
PR14,4-27	2700K	1281	89
PR14,4-30	3000K	1368	95
PR14,4-40	4000K	1584	110

VE8 V

REF.	CCT(K)	lm/m	lm/W
VE8-23- V	2300K	388	48
VE8-27- V	2700K	485	60
VE8-30- V	3000K	490	61
VE8-40- V	4000K	510	63
VE8-60- V	6000K	510	63

GR14-3D

REF.	CCT(K)	lm/m	lm/W
GR14-23-3D	2300K	560	40
GR14-27-3D	2700K	700	50
GR14-30-3D	3000K	740	53
GR14-40-3D	4000K	760	54
GR14-60-3D	6000K	760	54

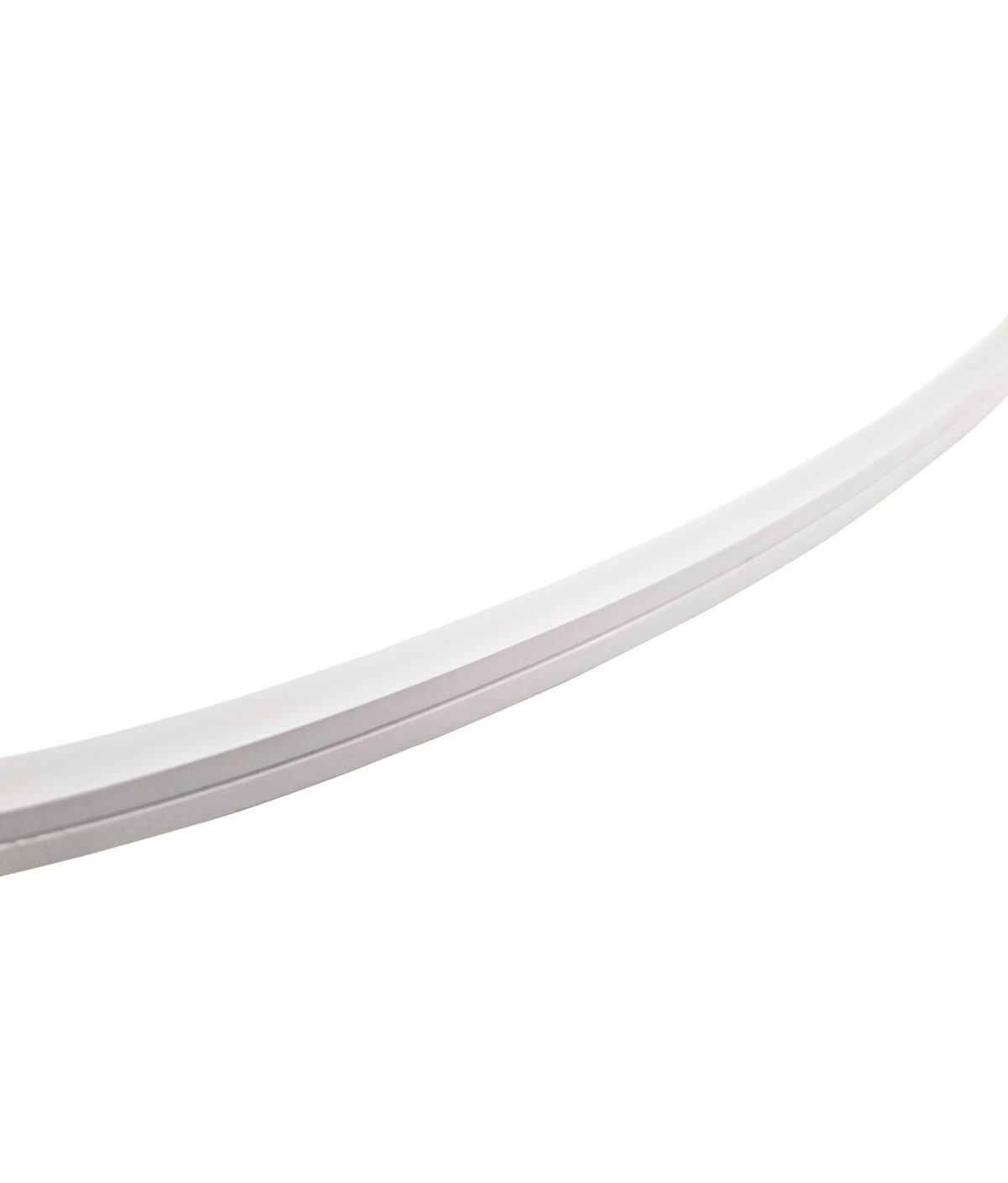

AU9,6 H

REF.	CCT(K)	lm/m	lm/W
AU9.6-23- V	2300K	384	40
AU9.6-27- V	2700K	480	50
AU9.6-30- V	3000K	525	54
AU9.6-40- V	4000K	570	59
AU9.6-60- V	6000K	570	59

FAL – LITE PRO

FAL	V	W	Measurements
FL30-24	198~ 264	30W	138 x 38 x 30mm
FL60-24	198~ 264	60W	168 x 38 x 30mm
FL75-24	198~ 264	75W	168 x 38 x 30mm
FL120-24	198~ 264	120W	227 x 38 x 30mm
FL150-24	198~ 264	150W	227 x 38 x 30mm
FL200-24	198~ 264	200W	318 x 45 x 30mm
FL250-24	198~ 264	250W	318 x 45 x 30mm
DALI2 PUSH	V	W	Measurements
FL45-DA2-24	176~ 264	45W	187 x 45 x 30,5mm
FL80-DA2-24	176~ 264	80W	227 x 38 x 30mm
FL150-DA2-24	176~ 264	150W	290 x 45 x 30,5mm
FL250-DA2-24	176~ 264	250W	431 x 45 x 30,5mm

Constant voltage power supply.
Designed to power LED strips or LED bulbs working at 24V constant voltage. Its elongated and flat format allows it to be easily integrated in many applications.
It has an input range of 198 to 264Vac with an excellent power factor and THD function (harmonic distortion <10%).
The high efficiency and compact air convection- cooled housing improve reliability and product lifetime. They feature multiple protections (input / output overvoltage, short circuit, temperature). Low noise and ripple (flicker free- no flicker).

DB-ESC

REF.	Description	Measurement
DB-ESC	SPI delay controller 32 ports	186 x 87 x 25mm

Controller for SPI signal.

It has 32 ports.

Programmable via display included.

With multiple scenes up and down effect.

Includes sensors and pre-wired ports.

DB-SEQ

REF.	Description	Measurement
DB-SEQ	SPI delay controller 1 port – 2 outputs	77 x 33 x 20mm

Controller for SPI signal. It has a 1 port and 2 outputs.

Not synchronisable.

With 4 recorded scenes.

With possibility to adjust the number of pixels and the speed of the scene.

Maximum 1500 pixels.

D-TT15-RGB

REF.	CCT(K)	Lm/m	Lm/W
D-TT15-RGB- 6P	Red	95	19
	Green	320	64
	Blue	55	11

D-IN9

REF.	CCT(K)	lm/m	lm/W
D-IN9-30-1P	3000K	64
D-IN9-30-1P	4000K	64

MIRA

Techo-pared

Model	Finish	Measurement	CCT	Lm	W
LIG238139	1 Matt silver	03 300mm	27 2700K	1624	24,1
	2 White		30 3000K	1657
	3 Black		40 4000K	1797
		06 600mm	27 2700K	2186	32,4
			30 3000K	2231
			40 4000K	2420
		12 1200mm	27 2700K	2748	40,7
			30 3000K	2804
			40 4000K	3042

KAUS

Wall

Model	Finish	Measurement	CCT	Lm	W
LIG237139	1 Matt silver	03 300mm	27 2700K	499	7,4
	2 White		30 3000K	509
	3 Black		40 4000K	552
		06 600mm	27 2700K	1061	15,7
			30 3000K	1083
			40 4000K	1175
		12 1200mm	27 2700K	2187	32,4
			30 3000K	2232
			40 4000K	2421

DE-4- DA-X

REF.	Description	Measurement
DE-4-DA-X	4 channels converter	124 x 50 x 25mm

4 channels converter compatible with DT6 DALI signal for conversion to PWM.

Accesories
RP-RGBW-150	Repeater	124 x 50 x 25mm
RP-RGBW-300	Repeater	87 x 21 x 8,5mm

CO15 RGBW HS

REF.	CCT(K)	Lm/m
CO15-RGBW-27-HS	Red	90
	Green	240
	Blue	40
	2700K	240

REF.	CCT(K)	Lm/m
CO15-RGBW-40-HS	Red	90
	Green	240
	Blue	40
	4000K	240

ST70

Recessed profile, special for plasterboard.

Made of extruded and anodized aluminum.

Designed to dissipate LED strips.

Ref.	Color	Description	Finish
ST70-A	Matt silver	Recessed profile without diffuser	Anodized
ST70-B	White	Recessed profile without diffuser	Painted
ST70-N	Black	Recessed profile without diffuser	Anodized

Diffusers
2100250	2100251	2100252	2100202	2100256

Caps
220700107	220700207

Union pieces and others
2410010	2410011	2410012	2441000701702

ST38

Surface profile

Made with extruded and anodized aluminum.

Designed as a heatsink for LED strips.

With option to include an internal driver

Ref.	Descripción	Acabado	Color
ST38-A	Aluminium surface profile	Anodized	Matt silver
ST38-B	Aluminium surface profile	Painted	White
ST38-N	Aluminium surface profile	Anodized	Black

Diffusers
2100250	2100251	2100252	2100202

End tap	Mounting bracket and Joining piece
220720107	2410010	2410011	2410012

Light leakage adhesive
2441001401702

ST37

Surface profile

Made with extruded and anodized aluminum.

Designed as a heatsink for LED strips.

With option to include an internal driver

Ref.	Descripción	Acabado	Color
ST37-A	Aluminium surface profile	Anodized	Matt silver
ST37-B	Aluminium surface profile	Painted	White
ST37-N	Aluminium surface profile	Anodized	Black

Diffusers
2100350	2100351

End tap	Mounting bracket and Joining piece
220710007	23503708	2410010	2410011	2410012

Light leakage adhesive
2441001401702

AVIOR

Model	Finish	Measurement	CCT	Lm	W
LIG156033	1 Matt silver	12 1200mm	30 3000K	2746	38,5
	2 White		40 4000K	2891
	3 Black	15 1500mm	30 3000K	3452	48,4
			40 4000K	3634
		20 2000mm	30 3000K	4629	64,8
			40 4000K	4873

IZAR

Pendant

Model	Finish	Measurement	CCT	Lm	W
LIG027096	1 Matt silver	12 1200mm	30 3000K	3123	44,2
	2 White		40 4000K	3226
	3 Black	15 1500mm	30 3000K	3937	55,7
			40 4000K	4068
		20 2000mm	30 3000K	5295	74,9
			40 4000K	5470

Ceiling

Model	Finish	Measurement	CCT	Lm	W
LIG327096	1 Matt silver	12 1200mm	30 3000K	3123	44,2
	2 White		40 4000K	3226
	3 Black	15 1500mm	30 3000K	3937	55,7
			40 4000K	4068
		20 2000mm	30 3000K	5295	74,9
			40 4000K	5470

ORION

Pendant

Model	Finish	Measurement	CCT	Lm	W
LIG012038	1 Matt silver	12 1200mm	30 3000K	3097	43,7
	2 White		40 4000K	3154
	3 Black	15 1500mm	30 3000K	3904	55,1
			40 4000K	3976
		20 2000mm	30 3000K	5250	74,1
			40 4000K	5347

Ceiling

Model	Finish	Measurement	CCT	Lm	W
LIG312038	1 Matt silver	12 1200mm	30 3000K	3164	44,7
	2 White		40 4000K	3222
	3 Black	15 1500mm	30 3000K	3971	56,1
			40 4000K	4045
		20 2000mm	30 3000K	5318	75,1
			40 4000K	5416

Wall

Model	Finish	Measurement	CCT	Lm	W
LIG212038	1 Matt silver	12 1200mm	30 3000K	741	10,5
	2 White		40 4000K	755
	3 Black	15 1500mm	30 3000K	1549	21,9
			40 4000K	1577
		20 2000mm	30 3000K	3164	44,7
			40 4000K	3222

CRUX

Ceiling

Model	Finish	Measurement	CCT	Lm	W
LIG3TS096	1 Matt silver	12 1200mm	30 3000K	1562	22,1
	2 White		40 4000K	1613
	3 Black	15 1500mm	30 3000K	1969	27,8
			40 4000K	2034
		20 2000mm	30 3000K	2648	37,4
			40 4000K	2735

Wall

Model	Finish	Measurement	CCT	Lm	W
LIG2TS096	1 Matt silver	12 1200mm	30 3000K	362	4,8
	2 White		40 4000K	374
	3 Black	15 1500mm	30 3000K	797	10,6
			40 4000K	823
		20 2000mm	30 3000K	1666	22,1
			40 4000K	1721

DRACO

Pendant

Model	Finish	Measurement	CCT	Lm	W
LIG015288	1 Matt silver	12 1200mm	30 3000K	1838	33,1
	2 White		40 4000K	1990
	3 Black	15 1500mm	30 3000K	2317	41,8
			40 4000K	2509
		20 2000mm	30 3000K	3116	56,2
			40 4000K	3374

ARA

Pendant

Model	Finish	Measurement	CCT	Lm	W
LIG014033	1 Matt silver	12 1200mm	30 3000K	2746	38,5
	2 White		40 4000K	2891
	3 Black	15 1500mm	30 3000K	3452	48,4
			40 4000K	3634
		20 2000mm	30 3000K	4629	64,8
			40 4000K	4873

Ceiling

Model	Finish	Measurement	CCT	Lm	W
LIG314033	1 Matt silver	12 1200mm	30 3000K	2746	38,5
	2 White		40 4000K	2891
	3 Black	15 1500mm	30 3000K	3452	48,4
			40 4000K	3634
		20 2000mm	30 3000K	4629	64,8
			40 4000K	4873

ATRIA

Pendant

Model	Finish	Measurement	CCT	Lm	W
LIG009288	1 Matt silver	12 1200mm	30 3000K	2940	33,1
	2 White		40 4000K	3184
	3 Black	15 1500mm	30 3000K	3707	41,8
			40 4000K	4014
		20 2000mm	30 3000K	4985	56,2
			40 4000K	5398

Wall

Model	Finish	Measurement	CCT	Lm	W
LIG209288	1 Matt silver	12 1200mm	30 3000K	639	7,2
	2 White		40 4000K	692
	3 Black	15 1500mm	30 3000K	1406	43,7
			40 4000K	1523
		20 2000mm	30 3000K	2940	33,1
			40 4000K	3184

ALTAIR

Model	Finish	Measurement	CCT	Lm	W
LIG155038	1 Matt silver	12 1200mm	30 3000K	2637	44,7
	2 White		40 4000K	2685
	3 Black	15 1500mm	30 3000K	3310	56,1
			40 4000K	3371
		20 2000mm	30 3000K	4431	75,1
			40 4000K	4513

HEZE

Pendant

Model	Finish	Measurement	CCT	Lm	W
LIG022096	1 Matt silver	12 1200mm	30 3000K	2030	33,1
	2 White		40 4000K	2097
	3 Black	15 1500mm	30 3000K	2559	41,8
			40 4000K	2644
		20 2000mm	30 3000K	3442	56,2
			40 4000K	3556

Ceiling

Model	Finish	Measurement	CCT	Lm	W
LIG322096	1 Matt silver	12 1200mm	30 3000K	2030	33,1
	2 White		40 4000K	2097
	3 Black	15 1500mm	30 3000K	2559	41,8
			40 4000K	2644
		20 2000mm	30 3000K	3442	56,2
			40 4000K	3556

Wall

Model	Finish	Measurement	CCT	Lm	W
LIG222096	1 Matt silver	03 305mm	30 3000K	442	7,2
	2 White		40 4000K	456
	3 Black	06 605mm	30 3000K	971	43,7
			40 4000K	1003
		12 1205mm	30 3000K	2030	33,1
			40 4000K	2097

ELECTRA

Pendant

Model	Finish	Measurement	CCT	Lm	W
LIG018038	1 Matt silver	12 1200mm	30 3000K	6193	87,4
	2 White		40 4000K	6307
	3 Black	15 1500mm	30 3000K	7808	110,2
			40 4000K	7952
		20 2000mm	30 3000K	10500	148,2
			40 4000K	10694

Wall

Model	Finish	Measurement	CCT	Lm	W
LIG218038	1 Matt silver	12 1200mm	30 3000K	1481	20,9
	2 White		40 4000K	1509
	3 Black	15 1500mm	30 3000K	3097	43,7
			40 4000K	3154
		20 2000mm	30 3000K	6327	89,3
			40 4000K	6444

POLARIS

Pendant Up & Down

Model	Finish	Measurement	CCT	Lm	W	Diffusor
LIG036288	1 Matt silver	12 1200mm	27 2700K	7049		07 Mate UP / Mate Down
	2 White		30 3000K	7193	64,8	09 Mate UP / Micro. Down
	3 Black		40 4000K	7776
		15 1500mm	27 2700K	8929
			30 3000K	9111	82,1
			40 4000K	9850
		20 2000mm	27 2700K	12062
			30 3000K	12308	110,9
			40 4000K	13306

Suspensión Down

Model	Finish	Measurement	CCT	Lm	W	Diffusor
LIG036288	1 Matt silver	12 1200mm	27 2700K	3602		02 Mate Down
	2 White		30 3000K	3676	33	04 Microprismatic Down
	3 Black		40 4000K	3974
		15 1500mm	27 2700K	4542
			30 3000K	4635	42
			40 4000K	5011
		20 2000mm	27 2700K	6109
			30 3000K	6234	56
			40 4000K	6739

Techo

Modelo	Acabado	Medida	CCT	Lm	W	Diffusor
LIG036288	1 Matt silver	12 1200mm	27 2700K	3602		02 Mate Down
	2 White		30 3000K	3676	33	04 Microprismatico Down
	3 Black		40 4000K	3974
		15 1500mm	27 2700K	4542
			30 3000K	4635	42
			40 4000K	5011
		20 2000mm	27 2700K	6109
			30 3000K	6234	56
			40 4000K	6739

BS19.2

REF.	CCT(K)	lm/m	lm/W
BS19,2-27	2700K	1615	84
BS19,2-30	3000K	1645	86
BS19,2-40	4000K	1680	88
BS19,2-55	5500K	1820	95

SN4.8

REF.	CCT(K)	lm/m	lm/W
SN4,8-27	2700K	450	94
SN4,8-40	4000K	470	98

HL19.2-RGBW

REF.	CCT(K)	Lm/m
HL19,2-RGB-27	Red	102
	Green	281
	Blue	51
	2700K	310

NE19.2 DW

REF.	CCT(K)	lm/m	lm/W
NE19,2-24-60	2400K	675	70
	6000K	684	71

D-UR19,2

REF.	CCT(K)	lm/m	lm/W
D-UE19,2-RGBW-3P	Red	155
	Green	395
	Blue	85
	3000K	600

CW15

REF.	CCT(K)	lm/m	lm/W
CW15-30-230	3000K	1425	95
CW15-40-230	4000K	1500	100

Download USER MANUAL

CO12 3L

REF.	CTT(K)	lm/m	lm/W
CO12-22-3LS	2200K	850	71
CO12-27-3LS	2700K	1050	88
CO12-30-3LS	3000K	1100	92
CO12-40-3LS	4000K	1100	92
CO12-57-3LS	5700K	1100	92

Please, consult for other temperatures and colours.

LB-PC

REF.	Description
LB-PC	Computer

Personal computer to install live control software with Artnet signal.

It may be a laptop or mini PC without a screen to prevent manipulation by unauthorised personnel, depending on the project.

To consult.

LB-SOFT

REF.	Description
LB-SOFT	Software control

Software for controlling LEDs from a conventional computer or laptop.

It can control tens of thousands of pixels.

Multiple combinations for generating scenes quickly and easily.

Generates custom mappings and programs a playlist of different scenes.

To consult.

DB-DI-DMX

REF.	Description	Measurement
DB-DI-DMX	Direccionador y tester señal DMX	140 x 100 x 40mm

DMX signal controller, also works in test mode to check DMX installations.

DB-CT-8

REF.	Description	Measurement
DB-CT-8	8-port SPI or DMX delay controller	292 x 170 x 50mm

8-port controller for SPI or DMX signal.

It needs a SD card of up to 8GB.

It can be synchronised with other DB-CT-8 for large installations.

Manages scenes and intensities with DMX signal via cable or with the BT-CAS-DMX-8 via Bluetooth.

Accessories
LB-AM-D	Digital amplifier (for SPI signal only)	55 x 35 x 17mm
BT-CAS-DMX-8	8 channel CASAMBI to DMX Converter	73 x 30 x 18mm

KIT SE S

Ref.	Finish
602330751	White	2m. max. 75W disco
602330752	Black	2m. max. 75W disco
602330757	Matt silver	2m. max. 75W disco

Ref.	Finish
602331001	White	2m. max. 100W disco
602331002	Black	2m. max. 100W disco
602331007	Matt silver	2m. max. 100W disco

Ref.	Finish
602331501	White	2m. max. 150W disco
602331502	Black	2m. max. 150W disco
602331507	Matt silver	2m. max. 150W disco

KIT SE

Ref.	Finish
600340751	White	2m. max. 75W disco
600340752	Black	2m. max. 75W disco
600340757	Matt silver	2m. max. 75W disco

Ref.	Finish
600341001	White	2m. max. 100W disco
600341002	Black	2m. max. 100W disco
600341007	Matt silver	2m. max. 100W disco

Ref.	Finish
600341501	White	2m. max. 150W disco
600341502	Black	2m. max. 150W disco
600341507	Matt silver	2m. max. 150W disco

Ref.	Finish
601340751	White	5m. max. 75W disco
601340752	Black	5m. max. 75W disco
601340757	Matt silver	5m. max. 75W disco

Ref.	Finish
601341001	White	5m. max. 100W disco
601341002	Black	5m. max. 100W disco
601341007	Matt silver	5m. max. 100W disco

Ref.	Finish
601341501	White	5m. max. 150W disco
601341502	Black	5m. max. 150W disco
601341507	Plata mate	5m. max. 150W disco

Ref.	Finish
601342401	White	5m. max. 240W Florón
601342402	Black	5m. max. 240W Florón
601342407	Matt silver	5m. max. 240W Florón

KIT SB S

Ref.	Finish
600320751	White	2m. max. 75W Florón
600320752	Black	2m. max. 75W Florón
600320757	Matt silver	2m. max. 75W Florón

Ref.	Finish
600321001	White	2m. max. 100W Florón
600321002	Black	2m. max. 100W Florón
600321007	Matt silver	2m. max. 100W Florón

Ref.	Finish
600321501	White	2m. max. 150W Florón
600321502	Black	2m. max. 150W Florón
600321507	Matt silver	2m. max. 150W Florón

Ref.	Finish
600122401	White	2m. max. 240W Florón
600122402	Black	2m. max. 240W Florón
600122407	Matt silver	2m. max. 240W Florón

Ref.	Finish
601320751	White	5m. max. 75W Florón
601320752	Black	5m. max. 75W Florón
601320757	Matt silver	5m. max. 75W Florón

Ref.	Finish
601321001	White	5m. max. 100W Florón
601321002	Black	5m. max. 100W Florón
601321007	Matt silver	5m. max. 100W Florón

Ref.	Finish
601321501	White	5m. max. 150W Florón
601321502	Black	5m. max. 150W Florón
601321507	Matt silver	5m. max. 150W Florón

Ref.	Finish
601122401	White	5m. max. 240W Florón
601122402	Black	5m. max. 240W Florón
601122407	Matt silver	5m. max. 240W Florón

Base with drill and without drill

Ref.	Description	Finish
69311007	Base 190 x 89 x 42mm	Matt silver
69311001	Base 190 x 89 x 42mm	White
69311002	Base 190 x 89 x 42mm	Black

Ref.	Description	Finish
69311507	Base 260 x 89 x 45mm	Matt silver
69311501	Base 260 x 89 x 45mm	White
69311502	Base 260 x 89 x 45mm	Black

Ref.	Description	Finish
69112407	Base 285 x 90 x 50mm	Matt silver
69112401	Base 285 x 90 x 50mm	White
69112402	Base 285 x 90 x 50mm	Black

Ref.	Description	Finish
69321007	Solid base 190 x 89 x 42mm	Matt silver
69321001	Solid base 190 x 89 x 42mm	White
69321002	Solid base 190 x 89 x 42mm	Black

Ref.	Description	Finish
69321507	Solid base 260 x 89 x 45mm	Matt silver
69321501	Solid base 260 x 89 x 45mm	White
69321502	Solid base 260 x 89 x 45mm	Black

Ref.	Description	Finish
69122407	Solid base 285 x 90 x 50mm	Matt silver
69122401	Solid base 285 x 90 x 50mm	White
69122402	Solid base 285 x 90 x 50mm	Black

Trim disc kit

Ref.	Description	Finish
62910021007	Trim kit Ø 100mm + cable gland + two screws	Matt silver
62910021001	Trim kit Ø 100mm + cable gland + two screws	White
62910021002	Trim kit Ø 100mm + cable gland + two screws	Black

Cable gland

Ref.	Description	Finish
25210208407	Cable glands 4,5mm	Nickel plated brass
25210310407	Cable glands 5,5-7mm	Nickel plated brass

Cable gland

Ref.	Description	Color
5841101950	Cable gland 4,8-6,5mm M 10×1	Clear
5841101901	Cable gland 4,8-6,5mm M 10×1	White
5841101902	Cable gland 4,8-6,5mm M 10×1	Black

D-CO22 RGBW H

REF.	CCT(K)	lm/m	lm/W
D-CO22-RGB30-7P-HS	Red	95
	Green	230
	Blue	50
	3000K	260

D-CO16.5 RGB H

REF.	CCT(K)	lm/m	lm/W
D-CO16,5-RGB-7P-HS	Red	85
	Green	225
	Blue	35

D-CO16.5 RGB V

REF.	CCT(K)	lm/m	lm/W
D-CO16,5-RGB-7P-VS	Red	90
	Green	240
	Blue	40

D-ME14.4-RGB-3P

REF.	CCT(K)	lm/m	lm/W
D-ME14,4-RGB-3P	Red	155
	Green	395
	Blue	85

D-JE19.2-RGBW

REF.	CCT(K)	lm/m	lm/W
D-JE19,2-RGBW-6P	Red	155
	Green	395
	Blue	85
	3000K	600

D-MR14.4-RGB-3P

REF.	CCT(K)	lm/m	lm/W
D-MR14,4-RGB-3P	Red	155
	Green	395
	Blue	85

D-UR19.2

REF.	CCT(K)	lm/m	lm/W
D-UR19,2-RGBW-3P	Red	155
	Green	395
	Blue	85
	3000K	600

AE15

REF.	CTT(K)	lm/m	lm/W
AE15-27	2700K	1215	81
AE15-30	3000K	1245	83
AE15-40	4000K	1260	84

FAF

REF.	W	V	Measurement
FF30-24	30W	220-240V	261 x 30 x 17mm
FF60-24	60W	220-240V	329 x 30 x 17mm
FF100-24	100W	220-240V	365 x 30 x 17mm
FF160-24	160W	220-240V	395 x 30,5 x 21,5mm

D-JE15

REF.	CCT(K)	lm/m	lm/W
D-JE15-RGB-6P	Red	120
	Green	310
	Blue	65

D-MR14.4-RGB-6P

REF.	CCT(K)	lm/m	lm/W
D-MR14,4-RGB-6P	Red	155
	Green	395
	Blue	85

D-IN9 RGB

REF.	CCT(K)	lm/m	lm/W
D-IN9-RGB-1P	Red	75
	Green	185
	Blue	40

D-JU19.2

REF.	CCT(K)	lm/m	lm/W
D-JU19,2-RGBW-6P	Red	155
	Green	395
	Blue	85
	3000K	600

ST36

Surface profile

Made with extruded and anodized aluminum.

Designed as a heatsink for LED strips.

Ref.	Descripción	Acabado	Color
ST36-A	Aluminium surface profile	Anodized	Matt silver
ST36-B	Aluminium surface profile	Painted	White
ST36-N	Aluminium surface profile	Anodized	Black

Diffusers
2100451	2100402	2100460

End tap		Mounting bracket and Joining piece
210041007	220570007	233013073	231035070	2410150	2410151	2410152

Light leakage adhesive
2441001401702

DB-OR

REF.	Description	Measurement
DB-OR	Analogue input converter	90 x 70 x 46mm

Converter of analogue input signals to digital DMX output signal of 8 or 16 bits.

It allows to interact with digital installations through push buttons, sensors, etc.

Compatible with our LB-SOFT.

DB-USB-DMX

REF.	Description	Measurement
DB-USB-DMX	Artnet-DMX direct converter, with USB connection, 1 universe	2m cable

Artnet signal to DMX signal converter for installations that work live.

The connection is made via USB cable to XLR 5 pins.

Controls 1 universe.

DB-CT-2-DMX

REF.	Description	Measurement
DB-CT-2-DMX	Artnet-DMX direct converter, 2 universes	90 x 70 x 46mm

Artnet signal to DMX signal converter for installations that work live.

The connection is made via Ethernet cable.

It has 2 ports controlling up to 1 universe per port.

Compatible with DIM.

DB-CT-2-32

REF.	Description	Measurement
DB-CT-2-32	Artnet controller, direct o deferred for SPI or DMX, 32 universes	88 x 105 x 49mm

Controller that works live and allows to record scenes to work in deferred operation with Artnet signal.

It is necessary to be connected to a PC and a control software to operate live or record the scenes.

Compatible with DMX and/or SPI signal converters.

It has 2 ports, maximum 16 universe per port.

Compatible with DIM rail.

DB-CT-2-12

REF.	Description	Measurement
DB-CT-2-12	Artnet controller, direct o deferred for SPI or DMX, 12 universes	87 x 105 x 49mm

Controller that works live and allows to record scenes to work in deferred operation with Artnet signal.

It is necessary to be connected to a PC and a control software to operate live or record the scenes.

Compatible with DMX and/or SPI signal converters.

It has 2 ports, maximum 4 universe per port.

Compatible with DIM rail.
